How to Build a Privacy Fence Screen: Step-by-Step Process

A beautiful outdoor patio is the perfect place to relax, entertain, and enjoy your backyard. However, unwanted views from neighbors, unsightly equipment, or a lack of privacy can significantly diminish your enjoyment of this space. The solution? A mobile privacy screen on wheels. Unlike permanent privacy installations that require professional installation and can be difficult to relocate, a mobile privacy screen gives you the flexibility to position it exactly where you need it and move it whenever your patio layout changes.

Materials and Tools You’ll Need

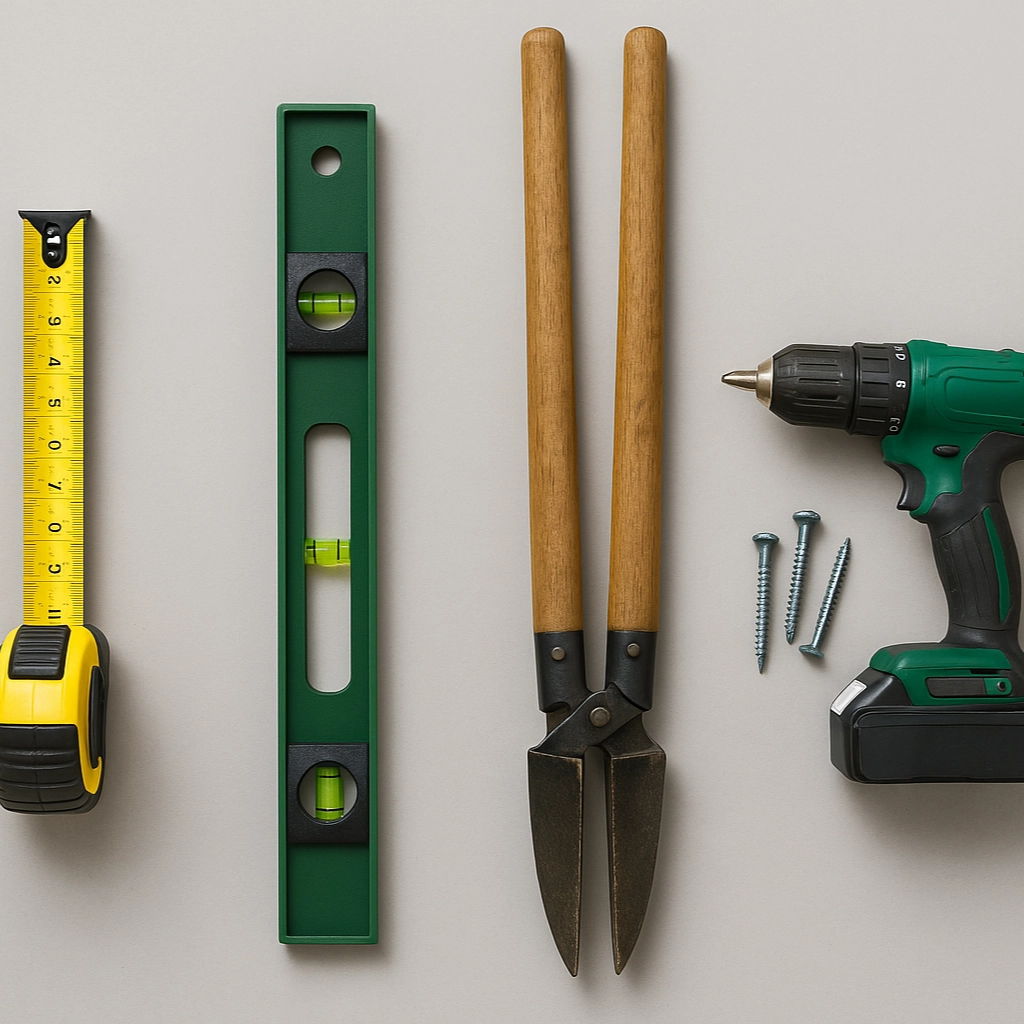

Tools Required:

• Power drill with bits
• Staple gun
• Circular saw or hand saw
• Measuring tape
• Speed Square
• Level
• Screwdriver or impact driver
• Hammer

Step 1: Plan Your Design and Gather Measurements

• Determine Frame Dimensions: Most mobile privacy screens work best at approximately 6.75 feet wide and 5 feet tall for the frame itself. This height is just slightly shorter than average human height, which provides adequate privacy without appearing too imposing to your outdoor space.

• Account for Base Height: Once you add the wheeled base, the total height will increase by approximately 8-12 inches. Don’t make your frame taller than necessary, as the base will add additional height that you need to factor into your initial design measurements.
• Measure Available Space: Decide where you want to place the screen and measure the available space carefully. Make sure you have adequate clearance for rolling the screen without hitting obstacles like furniture, railings, or landscape features that might impede movement.

Step 2: Build Your Frame Structure

• Select Pressure-Treated Lumber: All structural components should be pressure-treated 2×4 lumber, which resists rot and weathering for years of outdoor durability. You’ll need two horizontal pieces measuring 6.75 feet (top and bottom) and three vertical supports measuring approximately 5 feet each for proper structural support.
• Cut Lumber to Size: Lay all pieces flat on a sturdy, level surface and ensure accurate measurements before cutting. Use a circular saw or hand saw to cut your lumber to the appropriate lengths, maintaining straight edges and clean cuts for proper alignment and connection.
• Install Corner Brackets: Position your corner brackets at each corner connection point and secure them with exterior screws. These gate bracing brackets are essential; they prevent wobbling and provide the structural integrity your screen needs to withstand wind and movement from the rolling wheels.
• Space Vertical Supports Evenly: Install your three vertical support pieces evenly spaced across the frame with two outer verticals aligning with corners. Space the center vertical directly down the middle, approximately 3.37 feet from each outer support to ensure even weight distribution when adding covering materials.
• Verify Frame is Square and True: Once all connections are secure, use a level to verify your frame sits perfectly square. Measure diagonally from corner to corner if both measurements are identical, your frame is perfectly square and ready for the next phase of construction.

Step 3: Apply the Landscape Fabric Foundation Layer

• Prepare Your Work Surface: Landscape fabric serves as your first privacy barrier and helps the decorative reed fencing adhere better to the frame. Lay your completed frame flat on a secure surface such as patio furniture, workbenches, or a low retaining wall for easier stapling access.
• Position and Pull Taut: Position your landscape fabric across the entire frame surface and begin stapling from the corners. Pull the fabric taut as you work, creating tight coverage without wrinkles or sagging to ensure smooth, even appearance across the entire panel.
• Space Staples Consistently: Space your staples approximately 4-5 inches apart along the edges, maintaining consistent tension as you work methodically from one corner across to the opposite corner. This spacing ensures secure attachment and provides functional coverage for your privacy layer.
• Complete First Side: Work along all remaining edges until one side is completely covered with the landscape fabric. Trim any excess fabric hanging beyond the frame edges using a utility knife or sharp scissors for a clean, professional appearance.
• Repeat on Second Side: Flip the frame carefully and repeat the entire process on the opposite side using the same technique and spacing. This ensures both sides have consistent coverage and tension for a balanced, symmetrical final product.

Step 4: Install the Reed Fencing Privacy Layer

• Position Reed Fencing Carefully: Reed fencing creates the decorative, visible layer of your privacy screen while allowing air circulation and light diffusion. Lay your reed fencing over the landscape fabric on the first side of the frame, ensuring it’s aligned properly before beginning the stapling process.
• Begin Stapling with Patience: This material requires patience and precision to staple, so don’t hesitate to ask for assistance during this step.
  Begin stapling the reed fencing to the frame, pulling it snug as you work to maintain consistent tension throughout the installation.
• Handle Challenging Material: The reed material can be challenging to penetrate with staples, so use firm, steady pressure on your staple gun throughout the process. If you find stapling difficult, have someone hold the fencing taut while you operate the staple gun for better control and accuracy.
• Adjust Bottom Clearance: Before completely securing the reed fencing, gently push it upward approximately 1-2 inches from the bottom of the frame. This prevents the fencing from interfering with your base attachment in the next step and ensures smooth final assembly.
• Complete Both Sides: Repeat the reed fencing installation process on the second side of the frame, matching the positioning and tension of the first side for visual consistency. This ensures your finished privacy screen looks professional and balanced from both perspectives.

Step 5: Construct Your Wheeled Base

• Prepare Base Components: The base transforms your frame from a stationary panel into a mobile screen that you can move around your patio. Take your two 4-foot boards and arrange them perpendicular to the bottom of your frame, ensuring they’re properly aligned before securing.
• Extend Base Symmetrically: These boards will extend approximately 2 feet in front of the frame and 2 feet behind it, creating a stable foundation for both mobility and structural support. Measure these extensions carefully to ensure symmetrical balance on both sides of the frame.
• Use Triangular Screw Pattern: Secure each base board with three screws arranged in a triangular formation rather than just two screws for superior stability. Position one screw near the top of the connection, one near the bottom, and one in the middle offset to the side to maximize holding power.
• Verify Alignment and Level: Check that both base boards are parallel to each other and that your frame sits perfectly perpendicular on top of them. Use a level to confirm proper alignment and verify that the entire assembly sits flat before proceeding to wheel installation.
• Check for Stability: Once secured, verify the base is sturdy and shows no signs of wobbling or movement. Give the frame a gentle push from different angles to ensure the triangular brace pattern provides adequate rigidity and stability for safe mobility.

Step 6: Install Your Locking Wheels

• Choose Quality Wheels: Now comes the moment that transforms your screen from stationary to mobile with proper rolling capability. Select quality caster wheels with built-in locking mechanisms specifically designed for outdoor use and heavy loads.
• Understand Lock Importance: The locks are essential for safety, particularly if your patio slopes or if you live in a windy area. Locking wheels prevent your screen from rolling unexpectedly and provide security when the screen is positioned in its final location.
• Attach with Exterior Screws: Attach the wheels to the bottom of your base boards using exterior screws rated for outdoor conditions. Most quality wheels require four screws for secure installation, so use the appropriate fasteners and drill technique for each wheel.
• Ensure Even Installation: Install wheels at all four corners of your base for even weight distribution and smooth rolling movement. Position them approximately the same distance from each corner to maintain balance and prevent tilting or uneven rolling.
• Test Wheel Functionality: Before fully committing to this installation, test the wheels by rolling the screen across a flat surface. Verify smooth operation, check that the locks engage properly when activated, and make any adjustments needed for optimal performance.

Step 7: Stand Your Screen Upright and Conduct Final Tests

• Carefully Raise the Frame: With your helper, carefully tip the frame into its vertical position using slow, deliberate movements. Move slowly throughout this process to maintain control, prevent tipping, and ensure safety for you and your helper during this critical transition.
• Verify Plumb and Level: Once upright, verify that your frame stands plumb (perfectly vertical) and that the base sits flat on the ground. Check that all wheels touch the surface and all connections are tight and secure with no signs of shifting or movement.
• Inspect All Connections: After raising the frame, closely examine all fasteners, joints, and connection points for any signs of stress or loosening. Tighten any screws that may have shifted during the raising process to ensure structural integrity before testing rolling movement.
• Test Rolling Movement: Roll your screen gently in all directions to test wheel functionality and identify any binding, resistance, or uneven rolling. Listen for unusual sounds and watch for any tilting or leaning that might indicate uneven weight distribution or wheel problems.
• Lock and Hold Position: Lock the wheels firmly and verify that they hold position securely without any drift or rolling movement. Test the locking mechanism multiple times to ensure reliable operation when you need to secure your privacy screen in place.

Step 8: Position, Lock, and Stabilize

• Roll to Desired Location: Roll your mobile privacy screen to your desired location on your patio or yard where you want it to remain. Take your time to arrange it precisely, as this is where you’ll enjoy the benefits of your hard work.
• Engage All Wheel Locks: Once positioned correctly, immediately engage all wheel locks to prevent any unwanted movement or rolling.
  For additional stability and aesthetic appeal, arrange outdoor furniture, large planters, or pots against both sides of your screen.

Your mobile privacy screen is now complete and ready to use. Lock the wheels, place it as needed, and enjoy the privacy and flexibility this project provides for your outdoor living space.

Troubleshooting Common Issues

A well-constructed Privacy Fence Screen brings both structure and flexibility to an outdoor setting. The ability to reposition it as layouts change keeps the space dynamic and functional. Strong framing and proper stabilization ensure dependable performance in varying conditions. With thoughtful execution, it becomes a practical feature that enhances comfort and visual balance.
