How to Fix a Patio Umbrella: Ultimate DIY Guide

A patio umbrella can break, bend, or get dirty after strong wind, heavy use, or long exposure outdoors. The good news is that most patio umbrella repair issues can be fixed without replacing the entire umbrella. By repairing damaged parts through umbrella rib replacement, reusing components, and cleaning the canopy properly, the umbrella can look and function like new again.

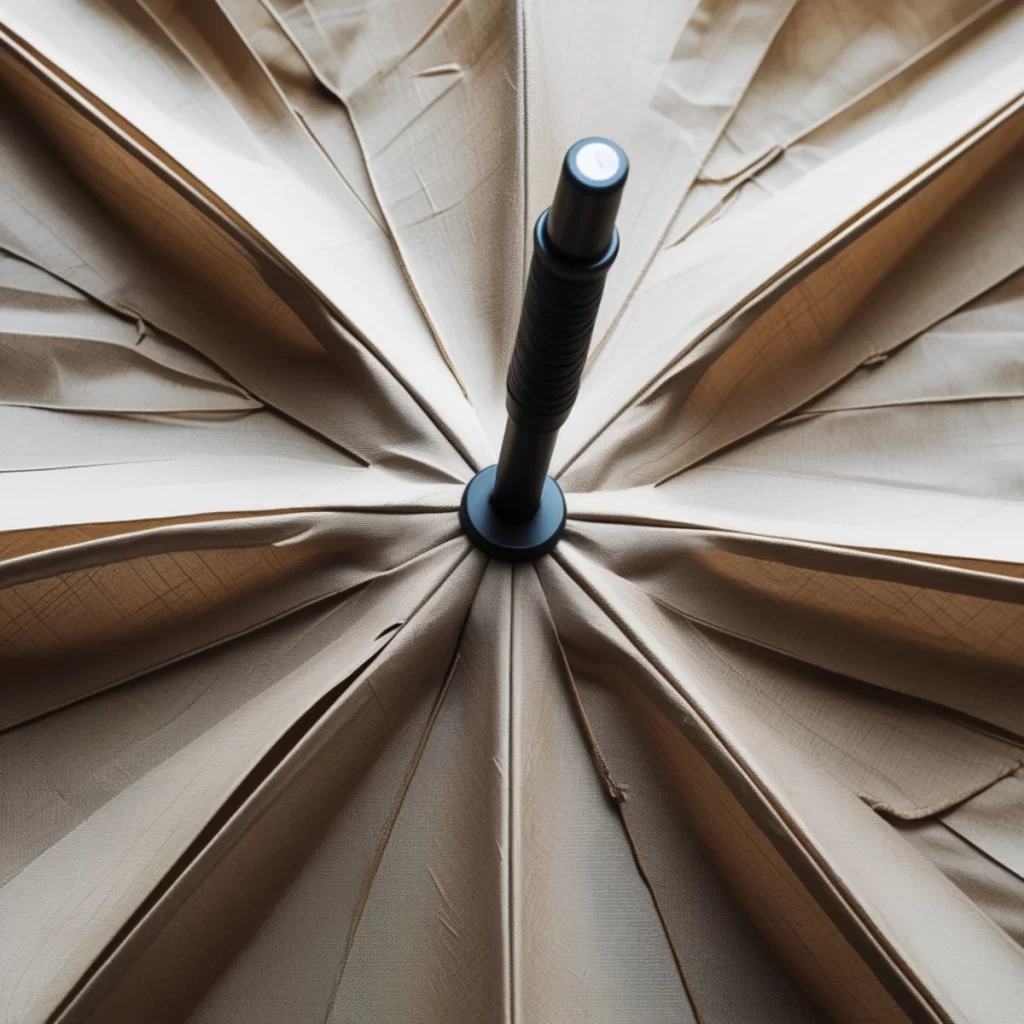

Start by Identifying the Problem

Before beginning any patio umbrella repair, take time to properly diagnose what’s wrong. This saves time and ensures you fix the actual issue rather than guessing.

Common Patio Umbrella Problems

• Broken or bent ribs that prevent the umbrella from opening fully
• Crank mechanism issues – handle spins freely or umbrella gets stuck halfway
• Torn, stained, or moldy canopy fabric that needs cleaning or patching
• Tilting or leaning umbrella due to unstable base or loose pole connections

Once you’ve identified the specific problem, proceed to the appropriate repair section below.

⚠️ Safety Warnings

Before starting any patio umbrella repair, read these important safety precautions:

• Sharp edges: Broken metal ribs can have sharp edges. Wear work gloves when handling damaged parts to prevent cuts.
• Secure the umbrella: Always work on a stable, flat surface. An unsecured umbrella can tip over and cause injury.
• Wind hazard: Never attempt repairs outdoors on windy days. The umbrella can catch wind and become dangerous.
• Pinch points: Keep fingers clear of moving parts and joints when testing the opening/closing mechanism.
• Chemical safety: Use lubricant spray and cleaning products in well-ventilated areas. Avoid contact with eyes and skin.
• Ladder safety: If your umbrella is tall, use a sturdy stepladder and have someone assist you. Never overreach.
• Check stability: After repairs, test the umbrella in a controlled environment before leaving it up in outdoor conditions.
• Children and pets: Keep children and pets away from the work area during repairs.

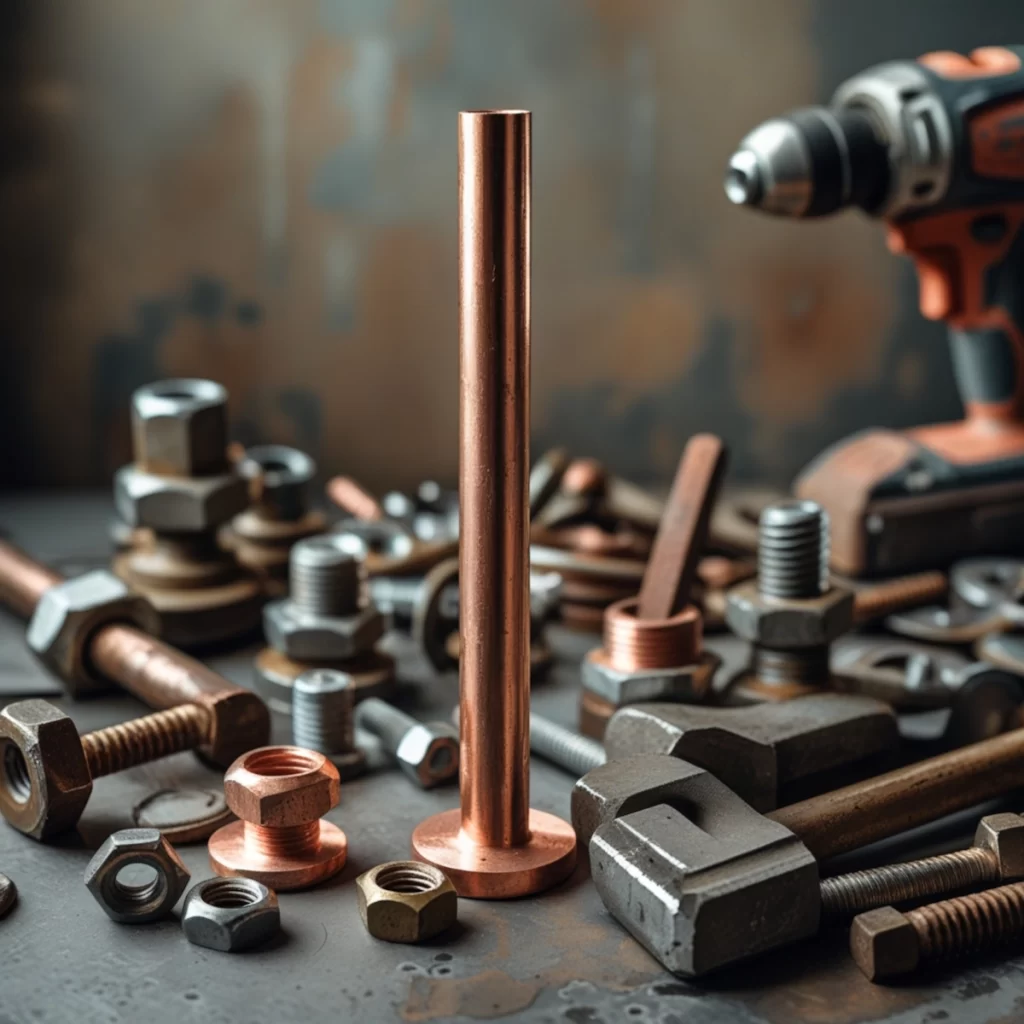

1. Repairing & Replacing a Broken Patio Umbrella Rib

Fixing a broken umbrella is easier when the top section is removed.

Step 1: Separate the Umbrella Top

• Press the silver locking button on the pole.

• Lift the top section off the shaft.

• Unscrew the top cap counterclockwise to expose the opening.

Step 2: Remove the Canopy

• Pull off the fabric caps at the end of each rib.
• Slide the canopy upward and remove it in one piece.

Step 3: Measure the Broken Rib

• Measure the damaged rib carefully.
• Match the replacement rib exactly in length and direction.

Step 4: Replacing the Upper Rib Section

Umbrella rib replacement is straightforward once you access the internal mechanism.

• Unscrew the four head screws from the plastic circular piece under the top.

• Lift the plastic cover and expose the metal ring with ribs attached.

• Carefully lift out the metal ring.
• Remove ribs one at a time until the broken rib is free.

• Attach the replacement rib facing the same direction as the others.
• Place the metal ring back and align ribs with the slots.
• Reinstall the screws.

Step 5: Replacing the Lower Rib Section

1. Flip the umbrella upside down.
2. Remove the four screws under the lower plastic piece.

3. Slide off the metal ring.

4. Snap the old rib off and attach the replacement.
5. Align ribs properly and reinstall the screws.

Step 6: Test the Umbrella Before Reinstalling the Canopy

Before putting the fabric back on:

• Reattach the umbrella top to the shaft.
• Open and close the umbrella several times.
• Check that all ribs move evenly and smoothly.

There are locking holes on both sides of the shaft, allowing the crank handle to be placed on either side.

Tip: Always test movement before reinstalling the canopy to avoid unnecessary rework.

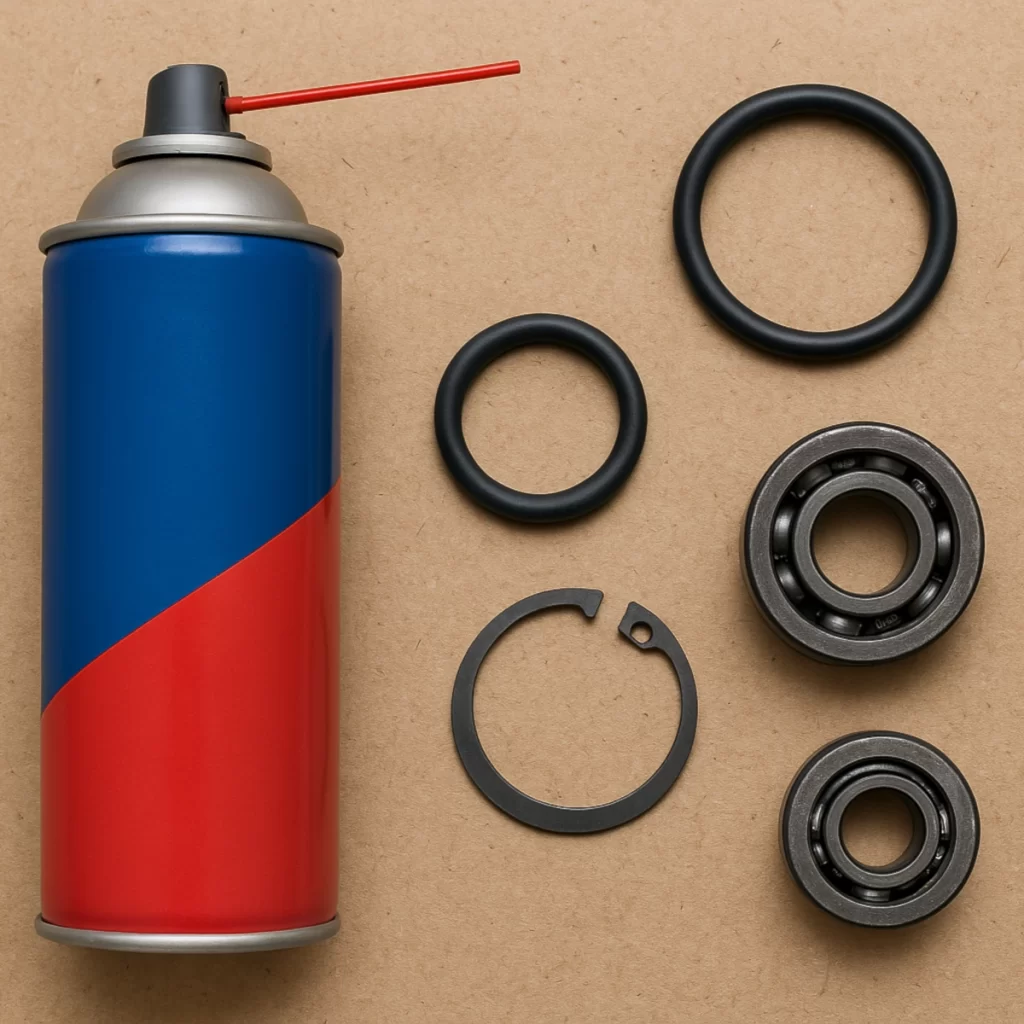

2. Fixing the Crank Mechanism and String

When the crank handle spins freely without raising the canopy, or the umbrella gets stuck halfway, the internal string or gear system needs repair.

Step 1: Access the Crank Housing

• Remove the crank handle by unscrewing the center bolt.
• Locate and remove the screws holding the crank housing cover (usually 2-4 screws).
• Lift off the housing cover to expose the internal gears and string.

Step 2: Inspect and Diagnose

Check for:

• Frayed or broken lifting cord
• Stripped or misaligned gears
• Stuck or damaged pulley wheels

Step 3: Replace the String

• If the cord is damaged, measure the old string length before removing.
• Purchase 2-3mm outdoor cord (polyester or nylon).
• Thread the new string through the pulley system following the original path.
• Attach one end to the sliding runner and wrap the other around the crank gear.
• Secure with tight knots and wind evenly.

Step 4: Lubricate and Reassemble

• Apply a silicone-based lubricant to all moving components, including the internal gears, pulleys, and sliding mechanisms. This helps reduce friction, prevents future sticking, and ensures smooth operation. Avoid oil-based lubricants, as they attract dust and debris.
• Once lubricated, carefully replace the housing cover and tighten all screws securely without overtightening. Reattach the crank handle, making sure it is properly aligned and firmly fixed.
• Finally, open and close the umbrella fully several times to confirm that the mechanism operates smoothly and without resistance.

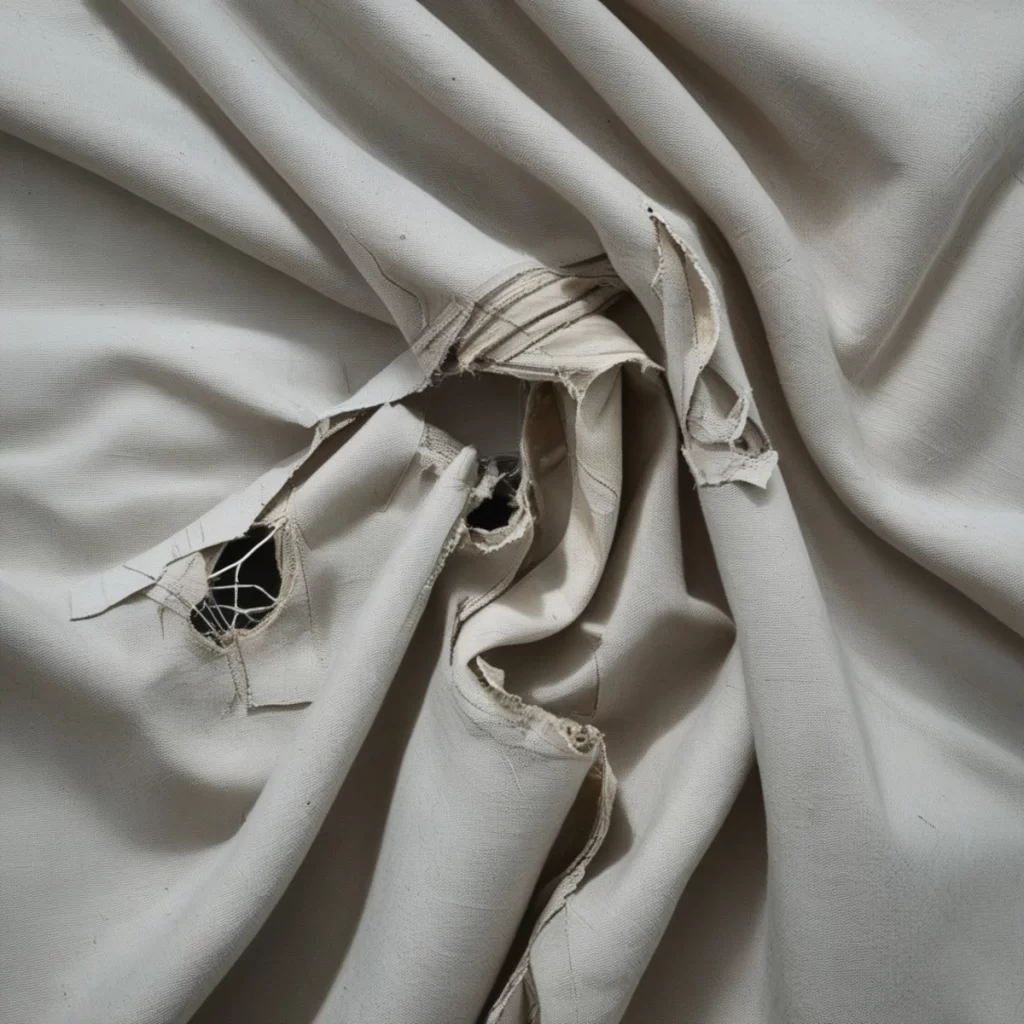

3. Repairing the Fabric/Canopy

Small tears or holes in a patio umbrella canopy can usually be repaired at home without replacing the entire fabric, as long as the damage is limited and addressed early.

Quick Patch Method:

• Fully open the umbrella and clearly identify the damaged area.
• Clean the surrounding fabric with a mild soap solution and allow it to dry completely, as patches will not bond properly to damp or dusty material.
• Cut a patch that is at least one inch larger than the tear on all sides to ensure strong coverage. Use a patch material that matches the canopy fabric, such as polyester, acrylic, or olefin, so the repair flexes evenly during use.
• Apply an iron-on patch, sew-on patch, or outdoor adhesive repair tape according to the manufacturer’s instructions, smoothing out any wrinkles or air bubbles.
• For added strength, apply a matching patch to the opposite side of the canopy. This reinforces the repair, helps maintain fabric tension, and reduces the risk of the tear spreading, especially in windy conditions.
• After completing the repair, keep the umbrella closed and unused for the full curing or bonding time recommended by the patch manufacturer. If the tear is near rib tips or seams, consider reinforcing the area with light stitching or an extra patch.
• Once fully cured, apply a fabric protectant spray to restore water resistance and UV protection.

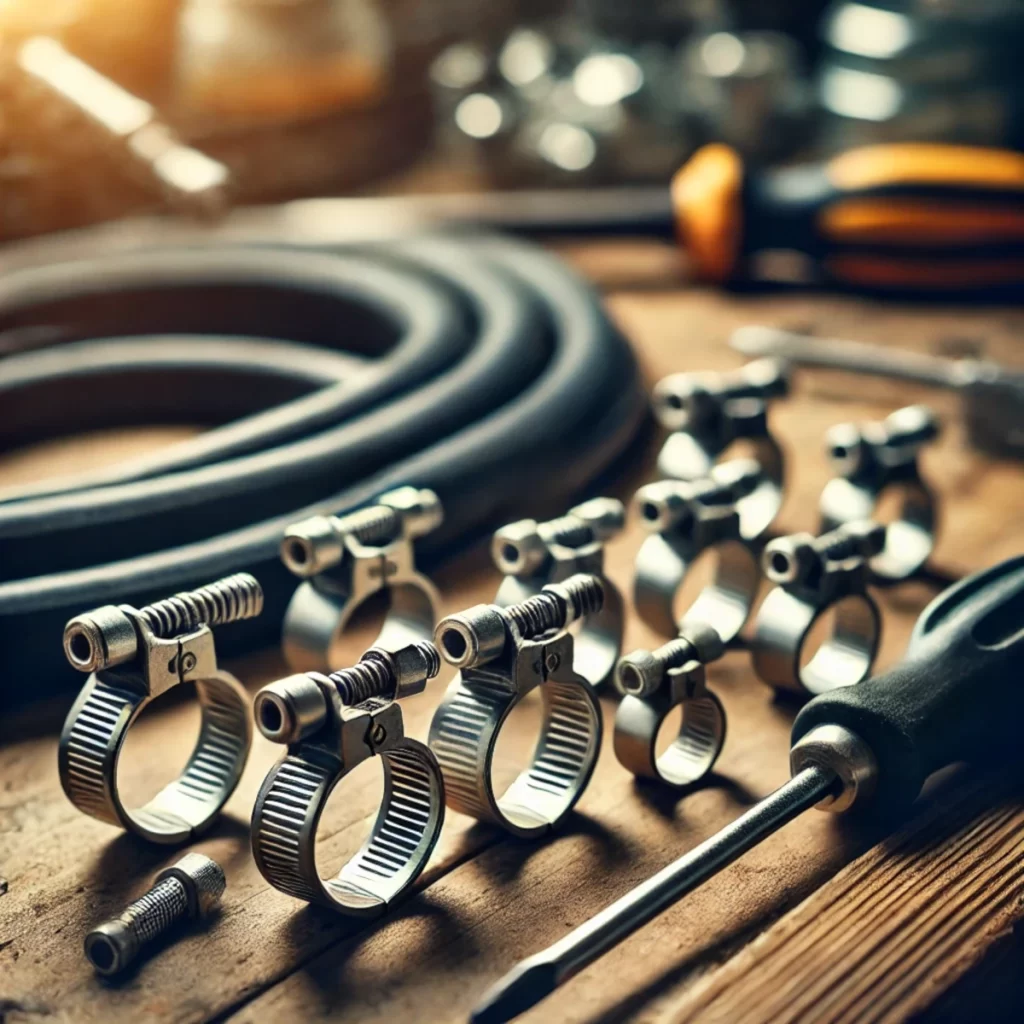

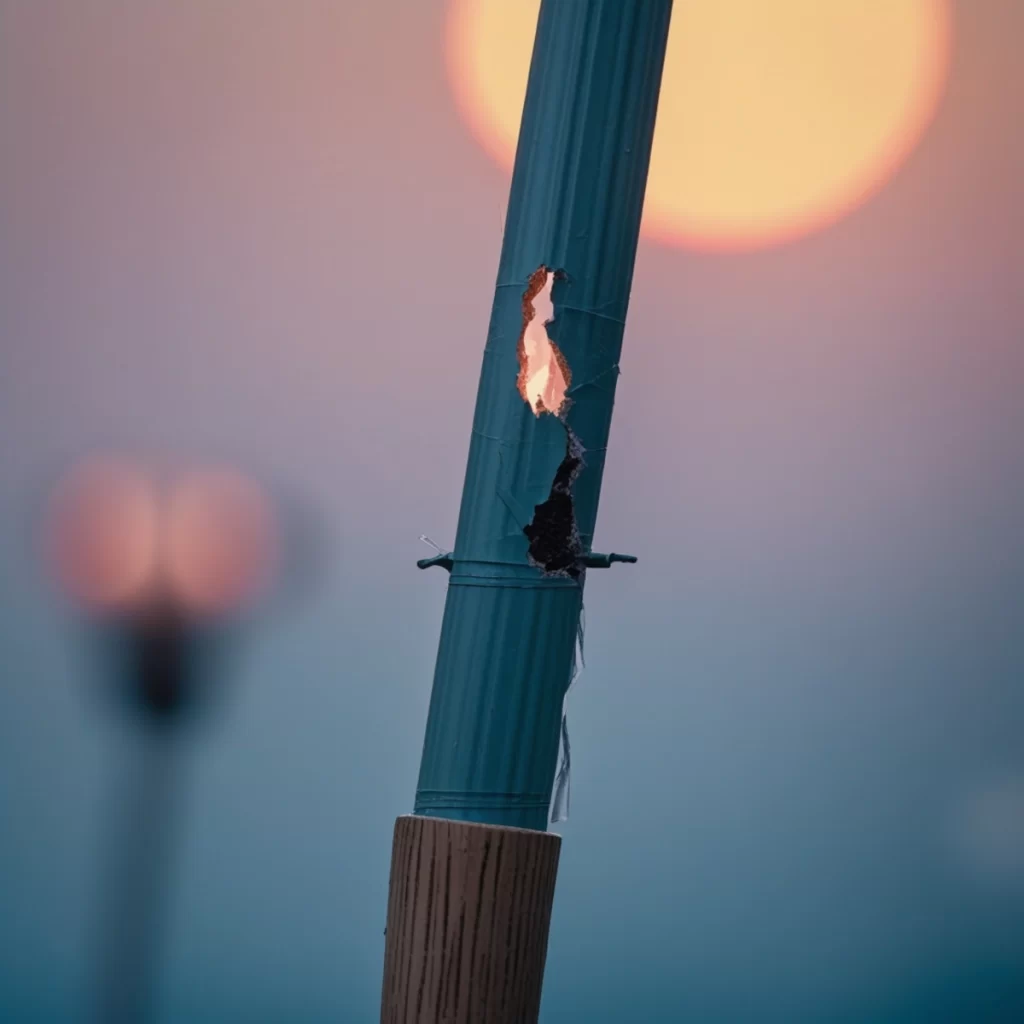

4. Fixing a Tilting or Leaning Umbrella

An umbrella that won’t stay straight can be frustrating and may not provide proper shade coverage. This problem usually involves the base, pole connection, or tilt mechanism.

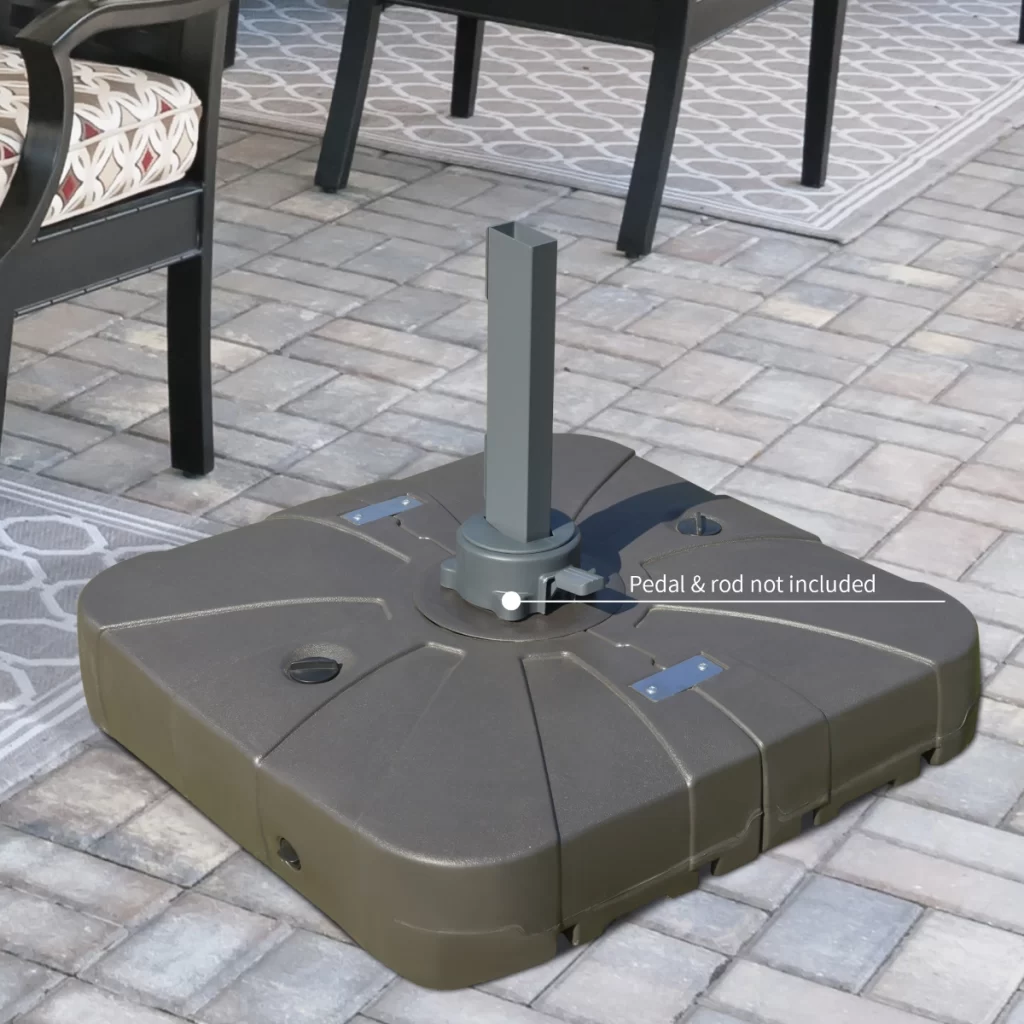

Step 1: Check the Base Stability

The most common cause of tilting is an inadequate or damaged base.

Inspect the base:

• Look for cracks, chips, or damage to the umbrella base
• Check if the base is heavy enough for your umbrella size
• Ensure the base is sitting on level ground

Fix it:

• Add more weight to the base using sandbags, weight plates, or water if it’s a fillable base
• Replace a cracked or damaged base with one that matches your umbrella’s weight requirements
• Place a flat paver or board under the base if the ground is uneven

Step 2: Inspect the Pole Connection

A loose connection between the pole and base causes wobbling and tilting.

Check the fit:

• Remove the umbrella pole from the base
• Inspect the pole’s bottom end for wear or damage
• Check inside the base tube for debris or damage

Fix it:

• Clean out any dirt or debris from the base tube
• If the pole is too narrow for the base, wrap the bottom section with waterproof tape or use a pole adapter sleeve
• Tighten any set screws or locking mechanisms on the base

Step 3: Check Pole Sections

Multi-piece poles can develop loose connections that cause leaning.

Inspect connections:

• Twist and pull gently on each pole section to check for movement
• Look for wear at connection points
• Check that locking buttons or pins are intact

Fix it:

• Tighten twist-lock connections by rotating clockwise
• Replace missing or broken locking pins
• Apply a small amount of electrical tape around loose connections for a tighter fit

Fixing a Patio Umbrella is a practical project that saves money and reduces waste. Whether you need a simple umbrella rib replacement or a complete patio umbrella repair, these steps will help you restore your outdoor shade. By reusing parts, replacing damaged ribs, and cleaning the umbrella canopy correctly, an umbrella can provide many more seasons of reliable shade. With regular inspection and simple maintenance, most common umbrella problems can be prevented before they get worse.
