Choosing between a cantilever vs market umbrella is one of the most important decisions when setting up a functional patio shade solution. Both styles provide sun protection but differ significantly in pole position, wind resistance, adjustability, base weight requirements, and ideal placement. Below is a complete comparison to help you decide which patio umbrella fits your layout, wind exposure, and budget.
At a Glance
If you’re deciding between a cantilever vs market umbrella, here’s the short answer:
- A cantilever umbrella has an offset pole and provides adjustable, pole-free shade.
- A market umbrella has a center pole and offers stronger wind stability.
- Cantilever umbrellas are best for lounge seating, pools, and open layouts.
- Market umbrellas are ideal for dining tables and windy patios.
- Cantilever models require heavier base weight.
- Market umbrellas need smaller bases.
The right choice depends on how you use your patio and how much wind exposure your space gets.

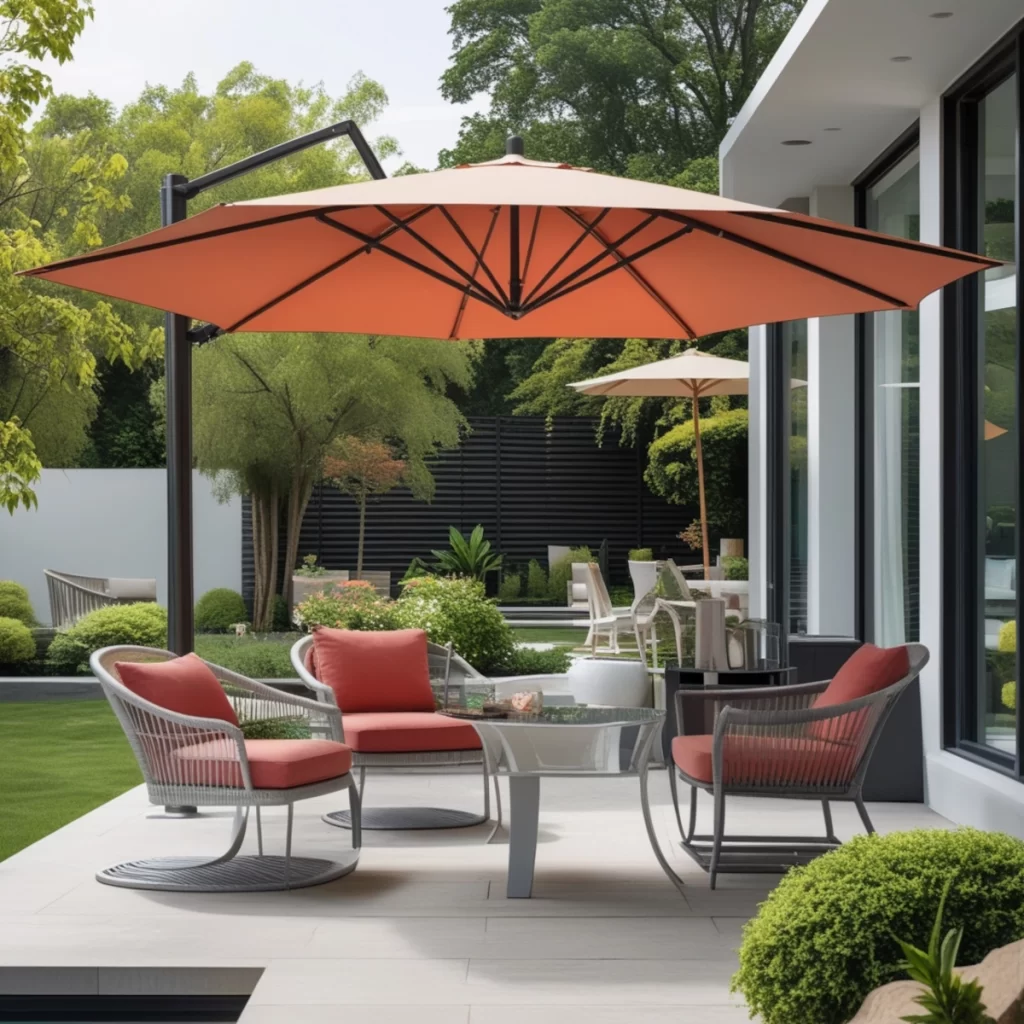

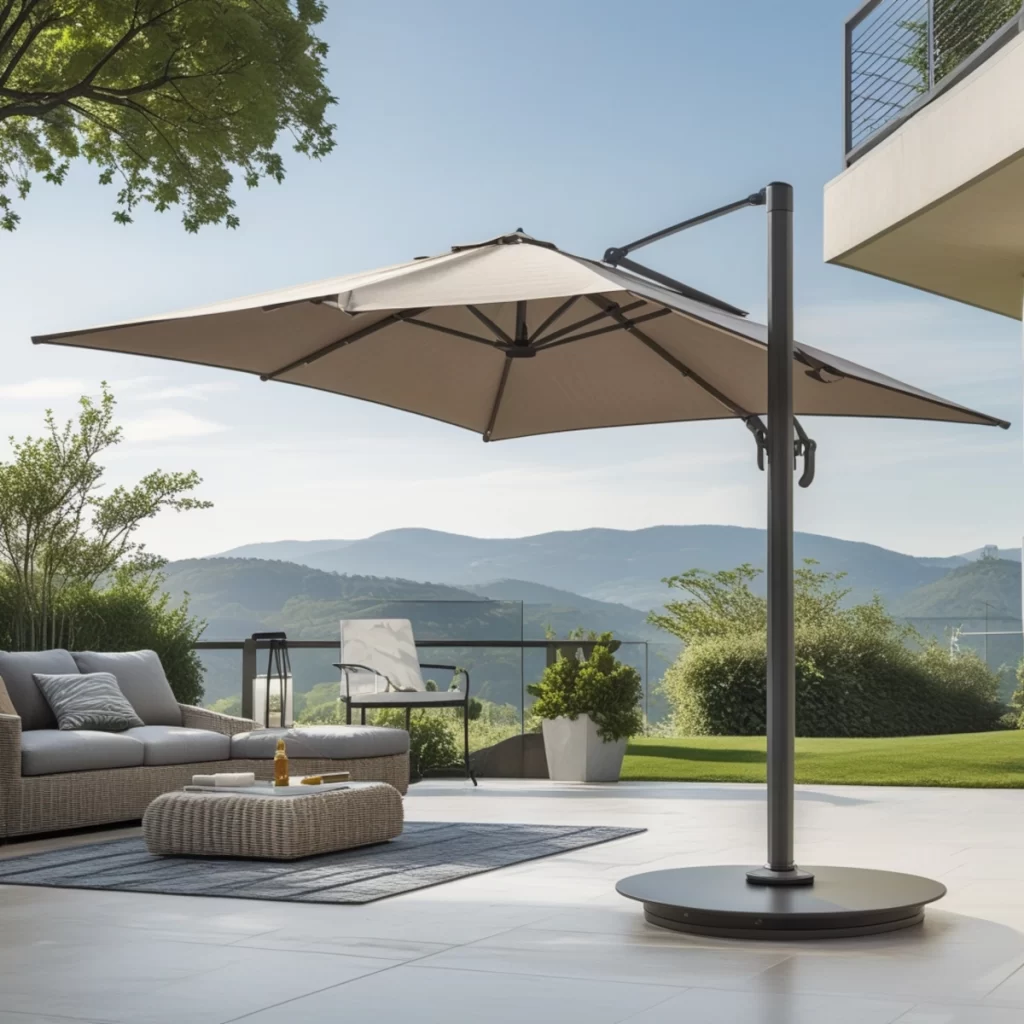

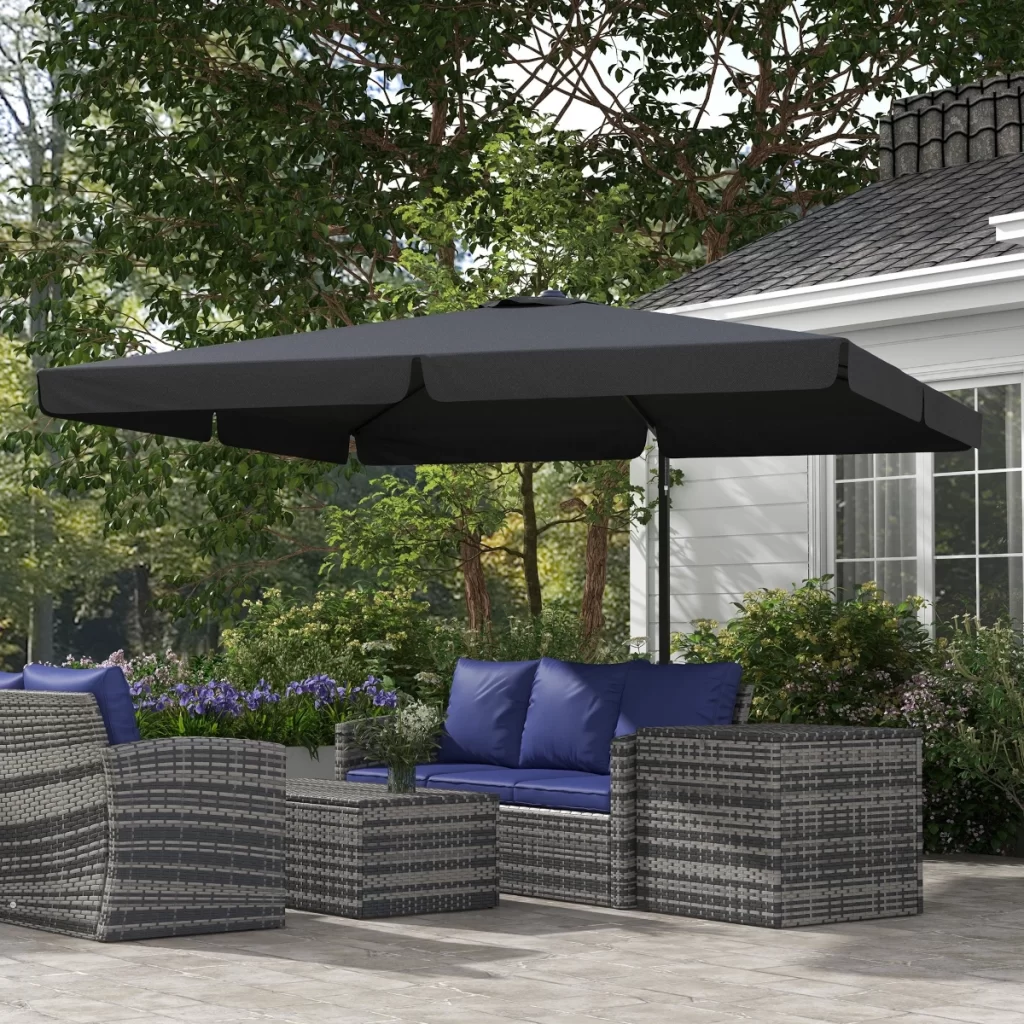

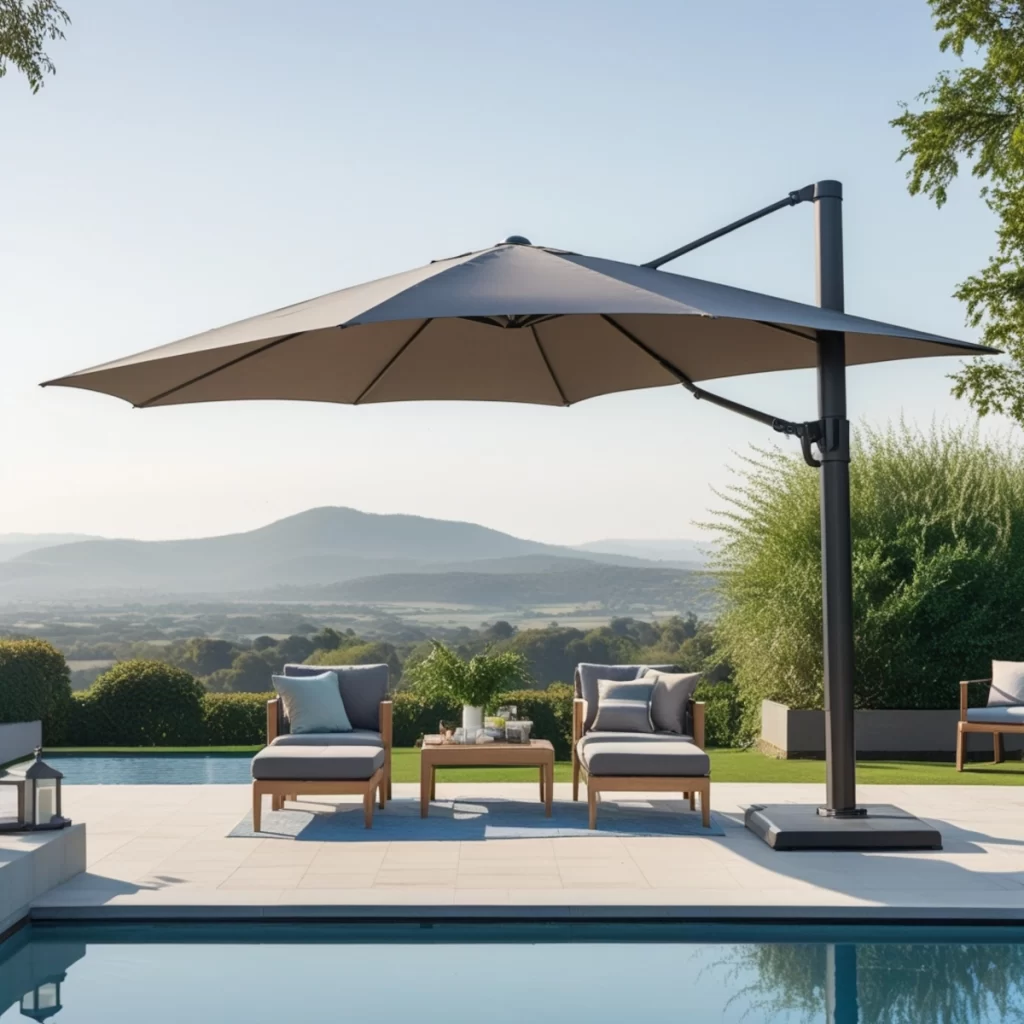

What Is a Cantilever Umbrella?
A cantilever umbrella, also known as an offset patio umbrella, features a side-mounted pole with a canopy suspended from a horizontal arm. Unlike a center pole umbrella, there is no vertical support running through the shaded area.
Key Features
- Offset pole positioned to the side or rear
- Fully unobstructed space beneath the canopy
- 360-degree rotation on many models
- Multi-axis tilt for tracking the sun
- Requires a heavy umbrella base (200–400+ lbs) or permanent mounting

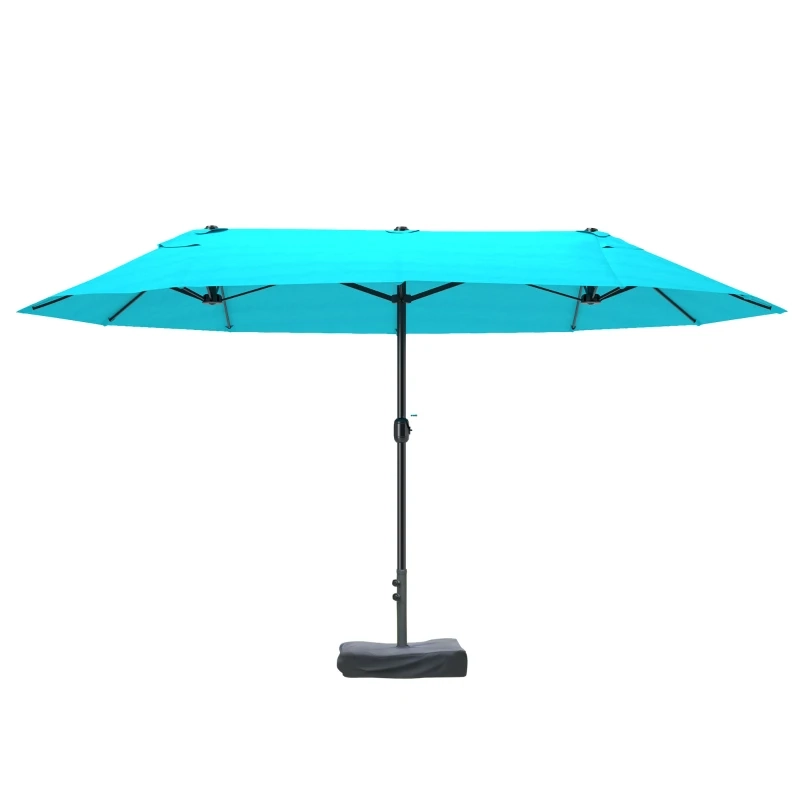

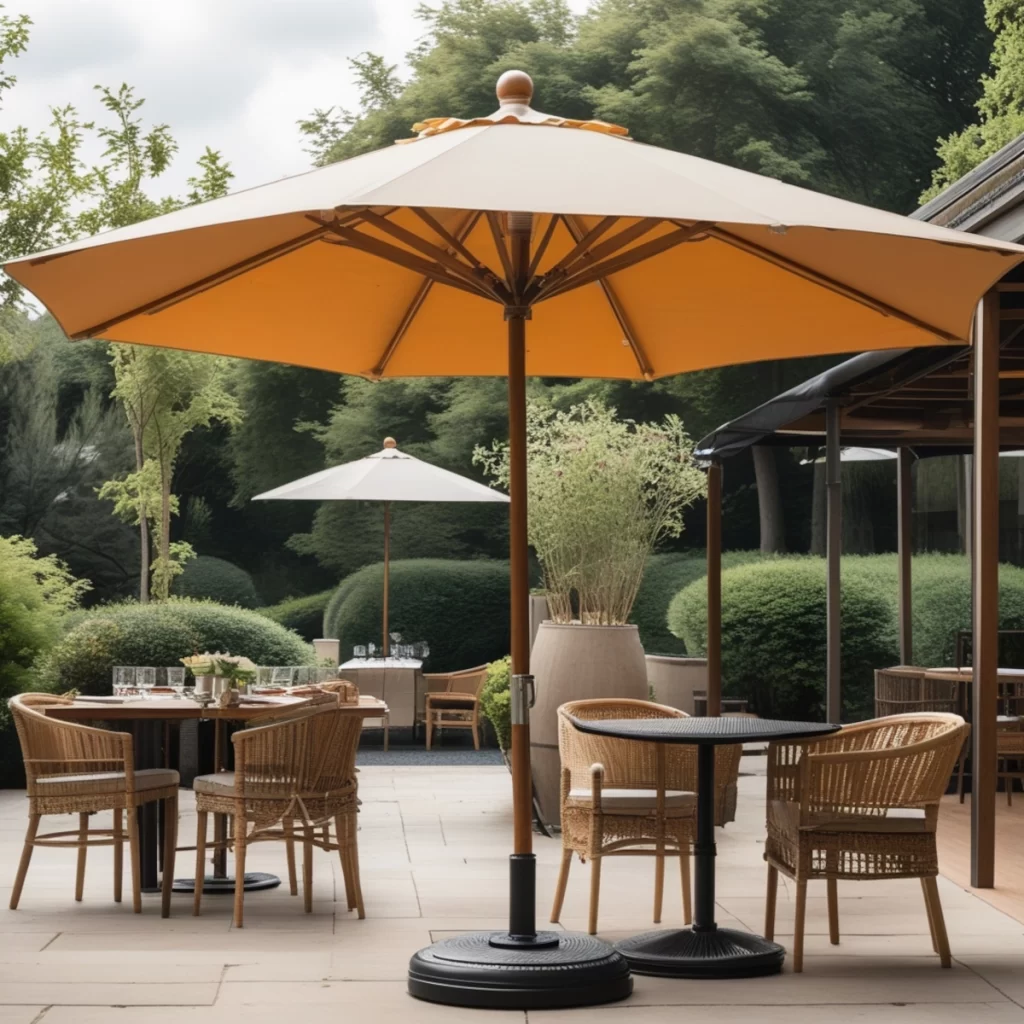

What Is a Market Umbrella?
A market umbrella is the traditional center pole patio umbrella design. The pole runs vertically through the middle of the canopy and typically inserts into a hole in an outdoor dining table.
Key Features
- Vertical center pole
- Crank or pulley lift system
- Smaller weighted base (30–70 lbs)
- Naturally stable structure
- Lower overall cost

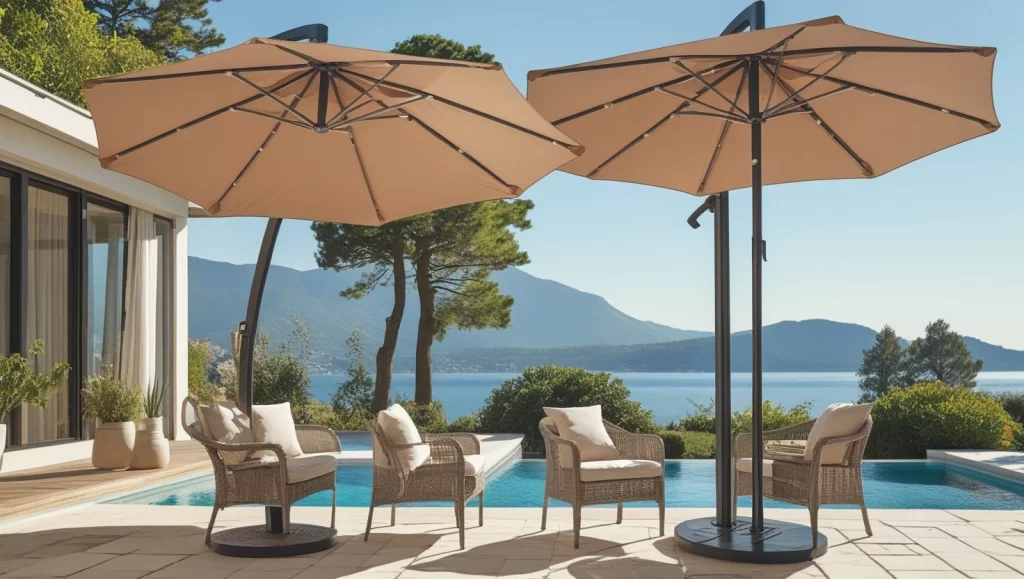

Cantilever vs Market Umbrella: Side-by-Side Comparison
| Feature | Cantilever Umbrella | Market Umbrella |
| Pole Position | Offset (side-mounted) | Center pole |
| Space Underneath | Fully open | Pole in middle |
| Shade Adjustability | Rotation + multi-tilt | Single-direction tilt |
| Wind Resistance | Moderate (needs heavy base) | Naturally stronger |
| Base Weight | 200–400+ lbs | 30–70 lbs |
| Best For | Lounge areas, pools | Dining tables |
| Price Range | Higher | More affordable |
| Maintenance | More moving parts | Simple design |
Shade Coverage and Adjustability
When comparing a cantilever vs market umbrella, shade flexibility is one of the biggest differences.
Cantilever umbrellas rotate up to 360 degrees and tilt in multiple directions. This allows you to track the sun throughout the day without moving your seating arrangement. For open patios with full sun exposure, this level of adjustability is a major advantage.
Market umbrellas provide fixed overhead coverage. Most models tilt in one direction, which works well for midday dining but may require repositioning as the sun shifts.
Note: If you need all-day adjustable patio shade, the cantilever umbrella offers more versatility. If you primarily need lunchtime dining coverage, a market umbrella performs reliably.
Wind Resistance: Which Patio Umbrella Performs Better?
Wind stability is critical when choosing between a cantilever vs market umbrella.
Market umbrellas have a structural advantage because the center pole distributes wind load evenly. Their lower center of gravity makes them more stable in moderate gusts.
Cantilever umbrellas create leverage because the canopy extends away from the base. This design requires substantial base weight or bolted installation. In windy environments, a ballast base of 400+ lbs may be necessary.
Note: For regularly windy patios, a market umbrella is typically the safer low-maintenance option unless the cantilever is permanently mounted.
Space and Clearance Requirements
Space planning is often overlooked until after purchase, and it’s one of the most common reasons people return patio umbrellas.
For a cantilever umbrella, measure before you buy:
- Minimum patio width: 10–12 ft to comfortably accommodate the base plus seating
- Base footprint: most cross bases run 24–36 inches wide; weighted plate stacks need similar clearance
- Clearance behind the pole: the arm typically extends 4–6 ft outward, so you need that same distance of open space behind where the pole sits
- Vertical clearance: 8 ft minimum beneath the canopy; 9–10 ft recommended for comfortable standing underneath a tilted canopy
- Canopy overhang past furniture: ideally 12–18 inches on each side for real shade coverage
For a market umbrella, the fit is simpler but still matters:
- Confirm your table’s center hole diameter (standard is 1.5–2 inches; measure before ordering)
- Canopy should extend 2–3 ft beyond the table edge on each side, so a 48-inch round table pairs well with a 9 ft umbrella
- Freestanding base needs 18–24 inches of clearance around the pole to avoid being a trip hazard
A common sizing mistake: people buy a 10 ft cantilever for a small 8×8 ft deck, leaving no room for the base. Measure your usable floor space first, subtract base footprint, then shop by canopy size.
Cost Comparison and Long-Term Value
Market umbrellas are more budget-friendly at nearly every level, with lower upfront cost, lighter bases, and fewer mechanical components to maintain. Cantilever umbrellas cost more due to reinforced frames, rotating arms, and tilt mechanisms, but deliver premium functionality and a modern aesthetic for larger patio spaces.
Your patio layout makes the decision for you more than personal preference does. If there’s a dining table with a center hole, a market umbrella is usually the better fit. If your seating includes a sectional, pool loungers, or a hot tub, a cantilever umbrella provides the clearance and flexibility you need.
When in doubt, stand in the exact spot where you want shade and look up. If a center pole would block a chair, interrupt a walkway, or interfere with your layout, a cantilever is the smarter structural choice. If the center space is open and clear, a market umbrella delivers reliable shade at a lower cost with stronger natural stability.
If you’d like to compare sizes, designs, and base types in one place, you can see all patio umbrella options here to find the style that fits your space.
FAQs
Most tables include a small rubber ring or wedge insert that grips the pole. If yours is missing or worn out, an inexpensive umbrella hole ring (available at most hardware stores) solves it instantly. Some people use a folded cloth as a quick fix, it works surprisingly well.
Double cantilever umbrellas cover significantly more area and suit large L-shaped sectionals or wide pool decks. The trade-off is weight, cost, and base requirements, they typically need 500+ lbs of ballast. For most residential patios, a single 10–13 ft cantilever is more than sufficient.
It can, but it’s not ideal. A standard round market umbrella covers a round or square table well. For a rectangular table, you’d either need an offset rectangular market umbrella (they exist but are less common) or two smaller umbrellas placed at each end, a setup some people actually prefer for longer tables.
Yes, but you need to distribute the base weight properly. A cross base spreads load across multiple points, which is safer for wood decking than a single-post base. Avoid dragging the base, lift it when repositioning. For permanent mounting, consult a contractor to ensure the deck framing can handle the anchoring load.
