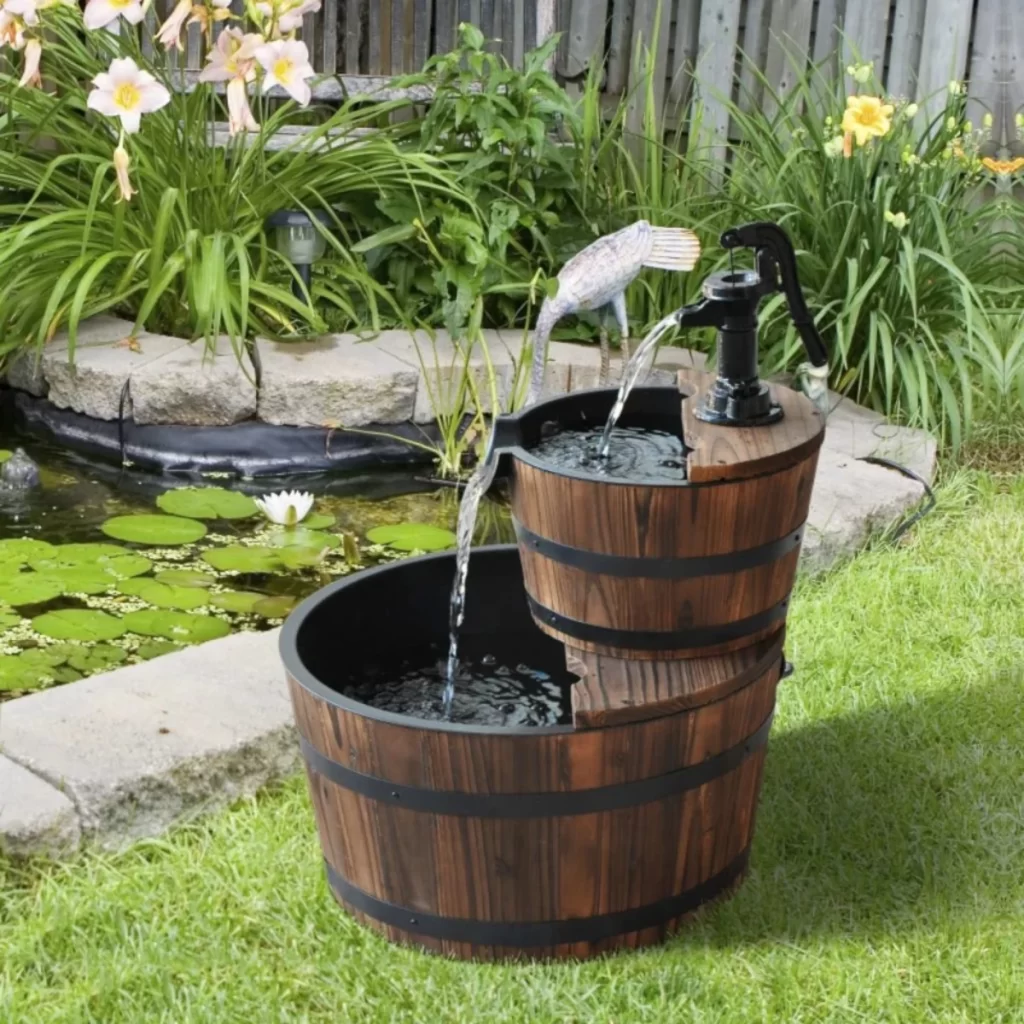

The Outsunny Outdoor Water Fountain is designed to bring soothing water flow, relaxing ambience, and elegant decor to your garden, patio, or balcony. To help you install it safely and keep the water flowing smoothly, this guide explains each step clearly from unboxing and assembly to pump operation, cleaning, and long-term maintenance.
WARNING & SAFETY INSTRUCTIONS
Before assembling or using this fountain, review these important safety rules:
- Indoor/Outdoor Use: Suitable for outdoor and indoor use. Place on a flat, stable surface.
- Electrical Safety: Always turn off and unplug the pump before assembling, cleaning, or refilling water.
- Avoid Water Contamination: Keep leaves, sediment, and debris away from the pump to prevent blockage.
- No Flammable Materials Nearby: Keep away from cloth, curtains, or heat-sensitive materials.
- Check Before Drilling (if mounting): Ensure the chosen area has no hidden wiring or water pipes.
- Supervise Children: This product contains electrical components and moving water never leaves children unsupervised near the fountain.
- Do Not Modify the Pump: The pump contains sealed components. Do not open or alter it.
- Only Use Clean Water: Dirty water reduces pump life and may cause malfunction.

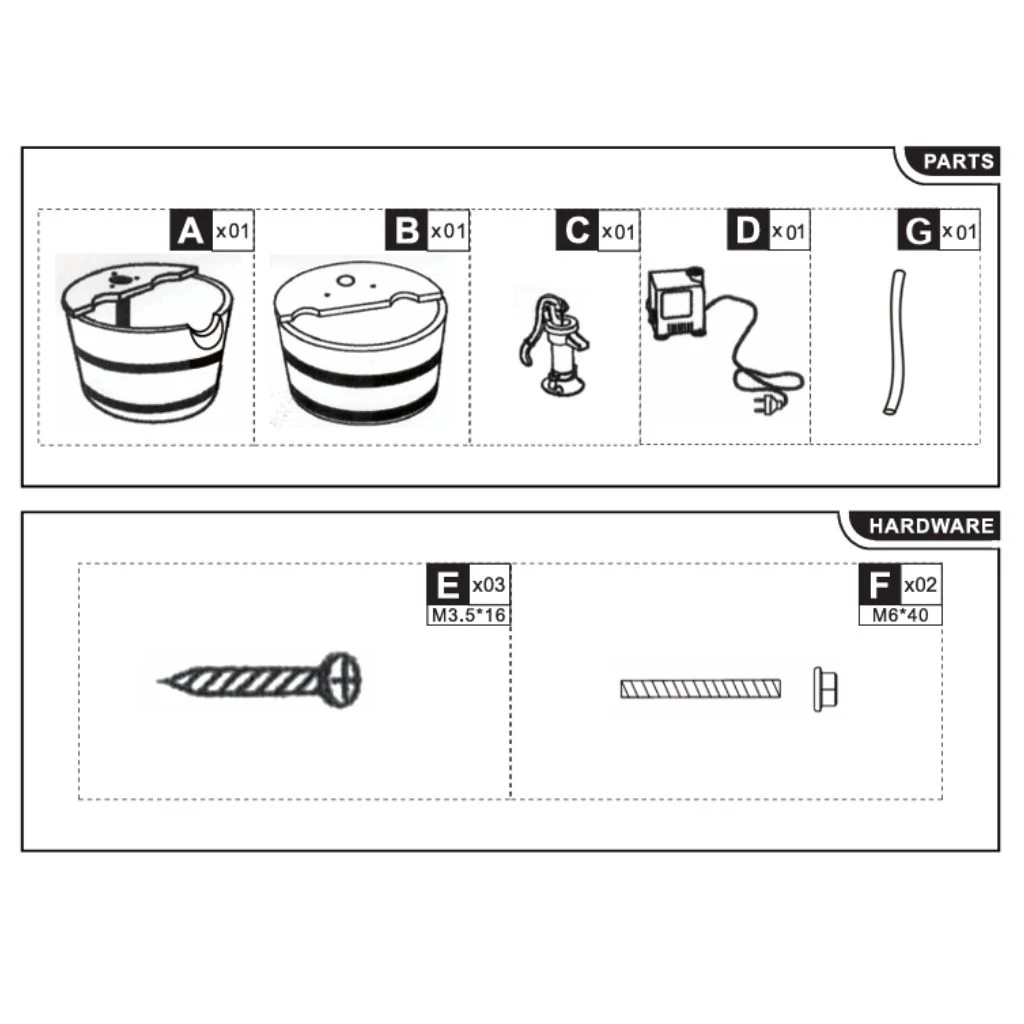

UNBOXING YOUR FOUNTAIN: WHAT’S INCLUDED
According to the manufacturer’s guide (page 1), the box includes the following parts & hardware:
Parts
- A – Upper Fountain Bowl
- B – Lower Fountain Bowl
- C – Decorative Top Feature (bird/ornament depending on variant)
- D – Pump Unit
- G – Built-in Water Tube Assembly
Hardware
- E – M3.5×16 Screw x3
- F – M6×40 Screws ×2
Having all items ready ensures smooth installation.
STEP-BY-STEP ASSEMBLY INSTRUCTIONS

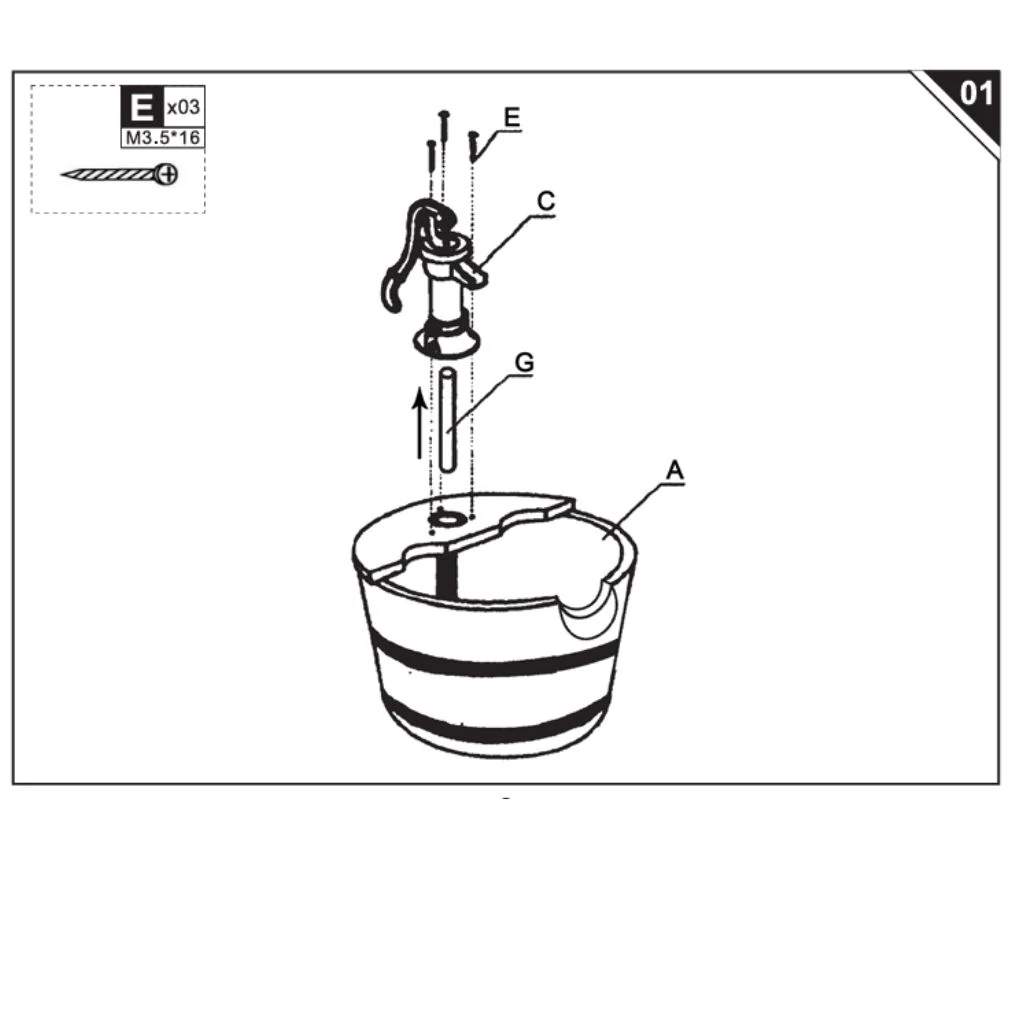

Step 1: Install the Pump Head and Water Tube
Begin by preparing the upper fountain assembly.
- Position the Upper Bowl (A) on a stable surface with the centre opening accessible.
- Insert the Water Tube (G) through the centre hole of the bowl. Slide it downward until securely seated inside the bowl opening.
- Align the Pump Head (C) with the exposed top of the water tube.
- Using the provided M3.5×16 screws (E ×3), fix the pump head to the bowl surface.
- Tighten each screw evenly to ensure the pump head stays firmly attached and upright.

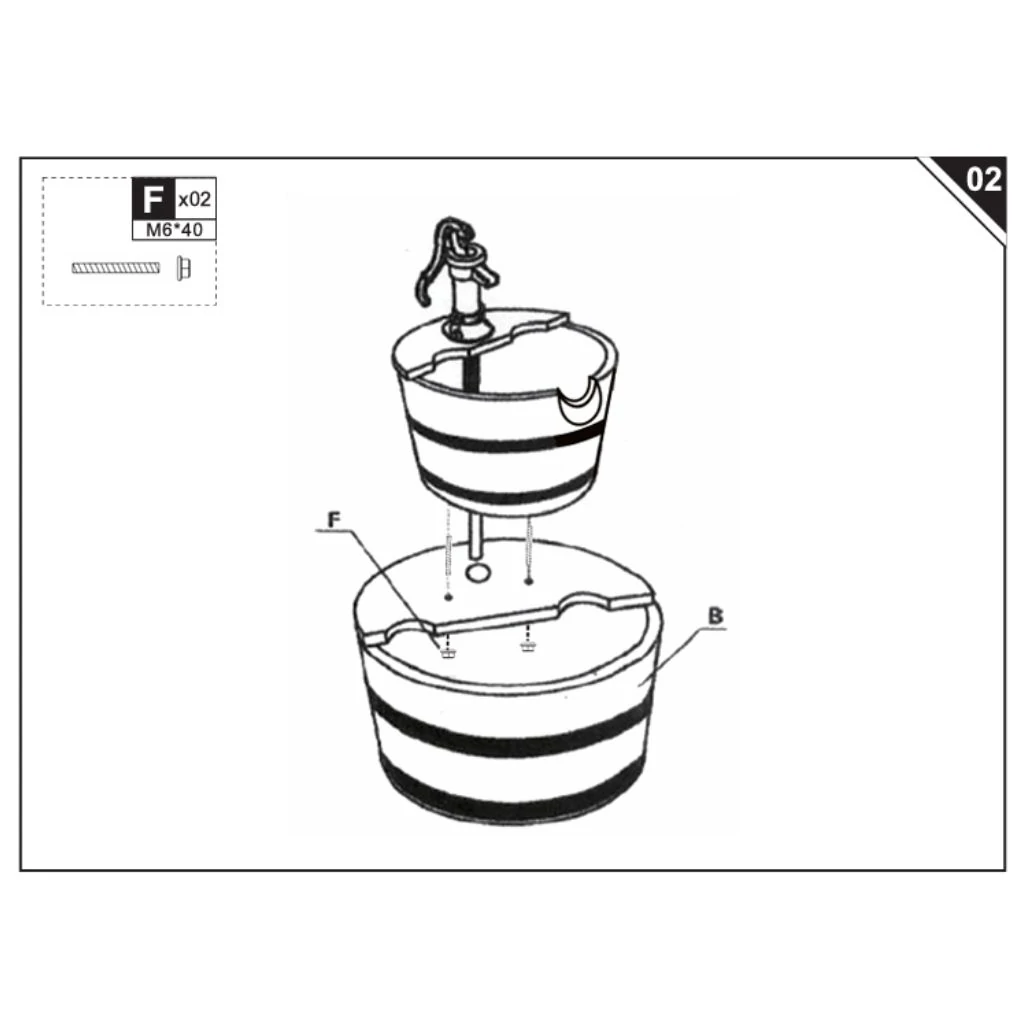

Step 2: Attach the Upper Bowl to the Lower Bowl
Now that the pump head and tube are in place, you can secure the upper assembly to the base.
- Position the lower bowl (B) on a level surface.
- Carefully align the upper bowl assembly above the lower bowl, ensuring the central tube fits into the receiving opening.
- Insert the M6×40 screws (F ×2) through the pre-drilled holes in the upper bowl and into the lower bowl.
- Tighten both screws evenly using a suitable screwdriver. Make sure the bowls sit firmly together and do not wobble.
- Check that the internal tube and pump components remain centered and undamaged during tightening.

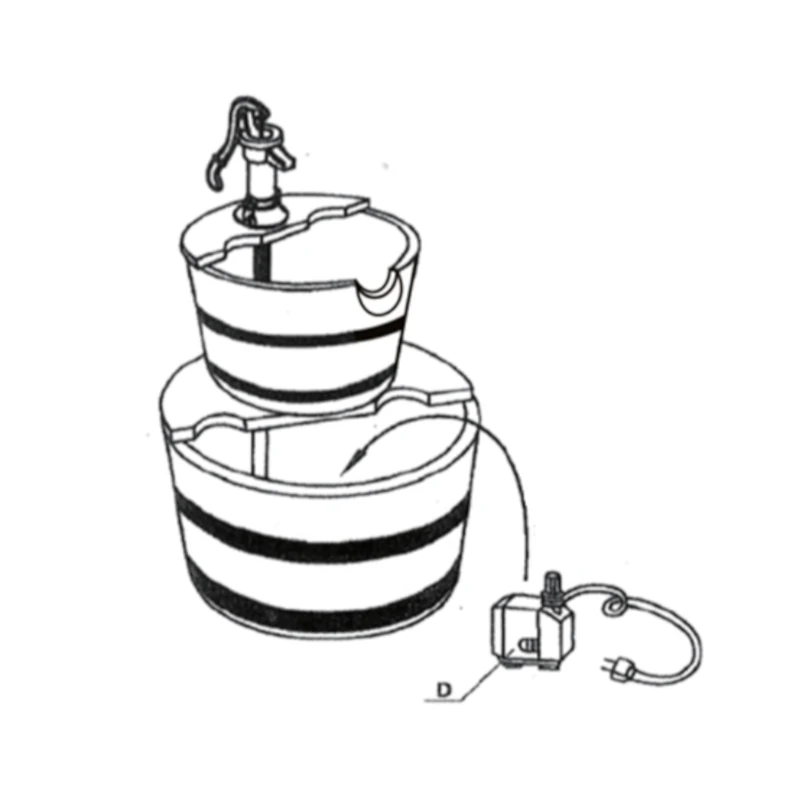

Step 3: Install the Pump and Complete the Water Connection
With the bowls secured together, you can now place the pump and connect the water flow system.
- Position the pump (D) inside the lower bowl, keeping it flat and fully supported.
- Connect the pump’s outlet nozzle to the vertical water tube installed earlier. Ensure the connection is snug so water flows smoothly without leaking.
- Route the power cord out of the fountain through the designated side opening so it does not get pinched between the bowls.
- Before plugging in, fill the lower bowl with clean water until the pump is completely submerged. Running the pump dry can cause permanent damage.
- Once submerged, connect the pump to a power source and allow the fountain to circulate water.
- Adjust the pump’s flow control dial (if included) to increase or decrease water flow according to your preference.
TROUBLESHOOTING
| Problem | Possible Cause | Solution |
| Pump not running | Not fully submerged / debris clog | Refill water, clean pump |
| Weak water flow | Debris in tube or pump filter | Clear sediment/leaves |
| Water splashing out | Flow rate too high | Reduce pump output |
| Loud pump noise | Running dry | Add water until fully submerged |
| Water cloudy | Algae or contamination | Replace water and clean bowls |
With proper setup and routine care, your Outsunny Water Fountain will provide calming, continuous water flow and a stylish decorative touch to your outdoor space. Follow the steps in this guide and maintain clean, clear water for long-lasting performance. You can also download the Outsunny Wood Freestanding Fountain (PDF) and keep it for your reference.
FAQs
1. Water is leaking but not from the screws or joints of the water fountain. What does that mean?
Leakage from a smooth surface usually indicates a crack in the bowl or tubing. Check both basins carefully after drying them. If you find a hairline crack or manufacturing defect, contact Aosom support for replacement parts.
2. How often should I clean the pump of the fountain to keep it running smoothly?
Outdoor fountains typically need a quick clean every 1–2 weeks, depending on weather and debris. Rinsing the pump filter and wiping the tube helps maintain strong flow. In dusty or leaf-heavy areas, you may need to clean more often.
3. Can I use anything besides plain water inside the water fountain?
No, using additives, coloured liquids, or untreated water can damage the pump. Always use clean tap water and replace it if it becomes dirty. This protects the pump and keeps the water looking fresh.
