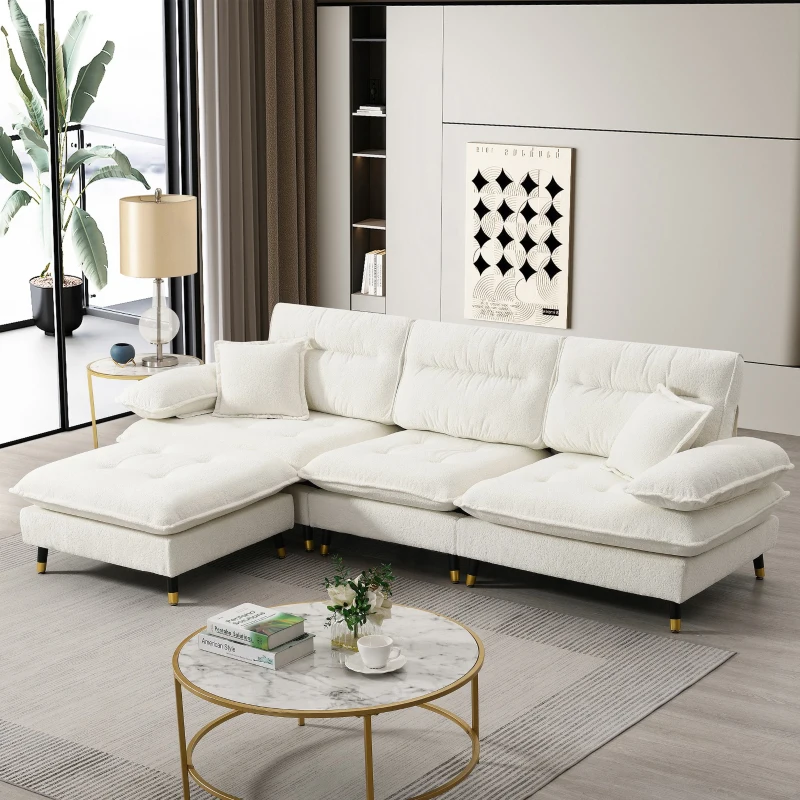

The L-Shaped Convertible Sectional Sofa combines modern design with versatile functionality, making it an ideal choice for any living space. This straightforward assembly guide will walk you through each step, ensuring a quick and easy setup. In no time, you’ll have a stylish and comfortable seating arrangement ready to enhance your home.
Whether you’re looking to relax after a long day or entertain guests, this guide will help you assemble your sofa easily and confidently. Each part fits securely for lasting durability and comfort.

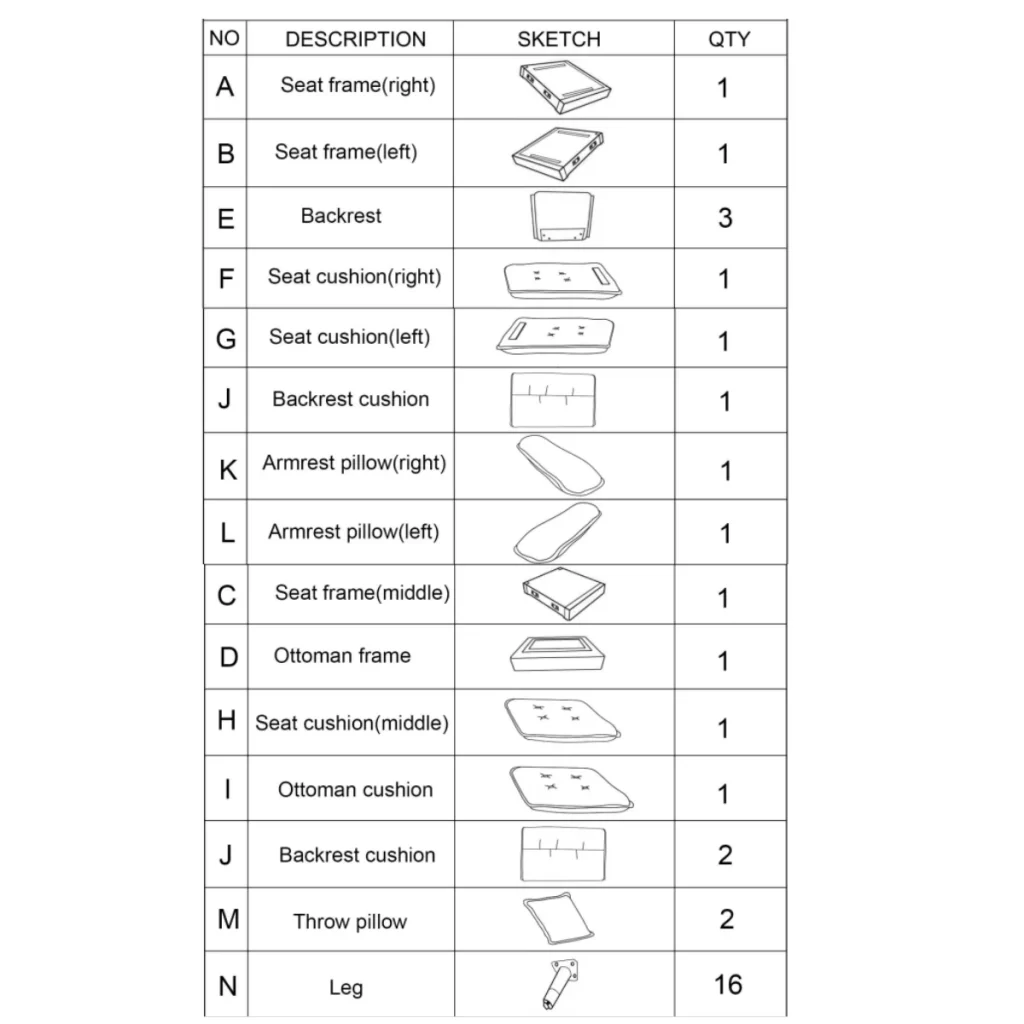

Package Content
Before starting the assembly, make sure you have all the necessary components and tools. Here is a list of the parts and hardware that you’ll need:
Parts:
- Seat frame (right) – 1 piece
- Seat frame (left) – 1 piece
- Backrest – 3 piece
- Seat cushion (right) – 1 piece
- Seat cushion (left) – 1 piece
- Backrest cushion – 1 piece
- Armrest pillow (right) – 1 piece
- Armrest pillow (left) – 1 piece
- Seat frame (middle) – 1 piece
- Ottoman frame – 1 piece
- Seat cushion (middle) – 1 piece
- Ottoman cushion – 1 piece
- Backrest cushion – 2 piece
- Throw pillow – 2 piece
- Leg – 16 piece

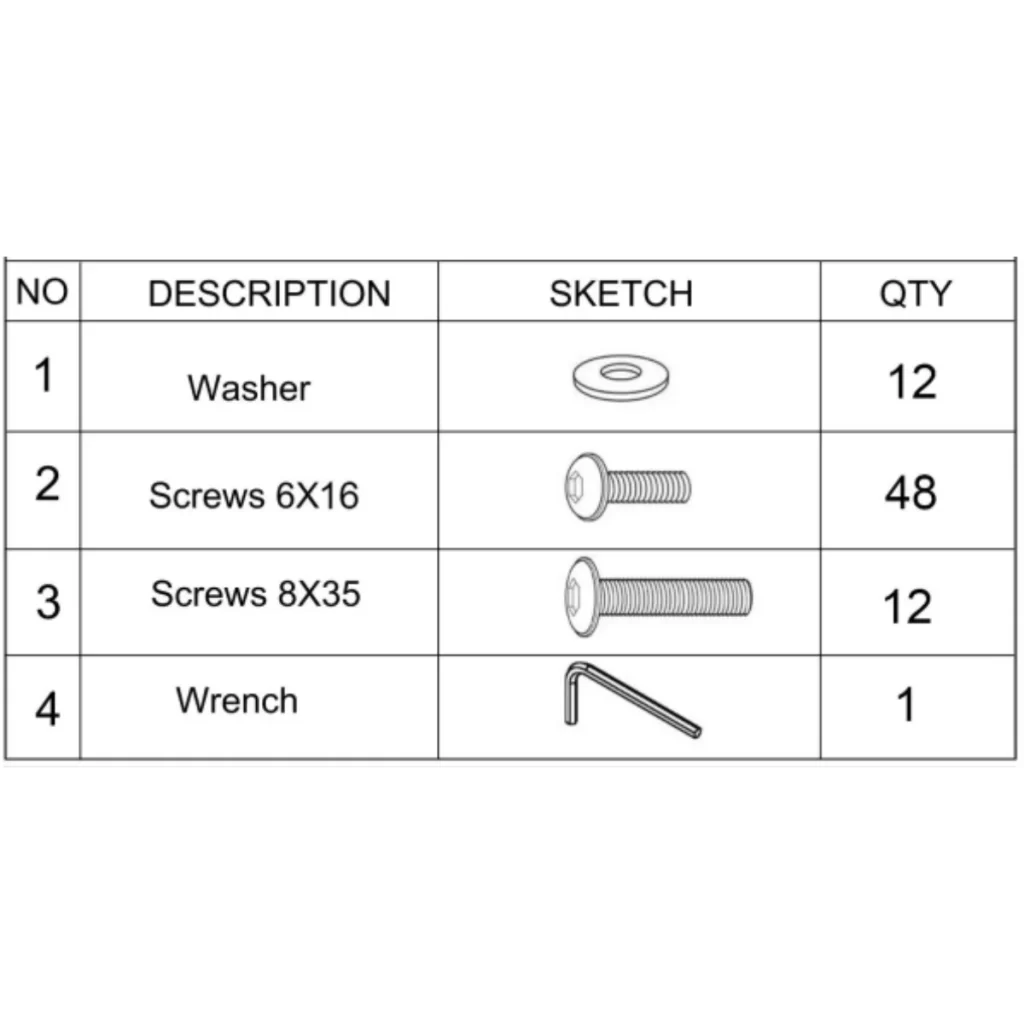

Tools:
- Washer – 12 piece
- Screws 6X16 – 48 piece
- Screws 8X35 – 12 piece
- Wrench – 1 piece

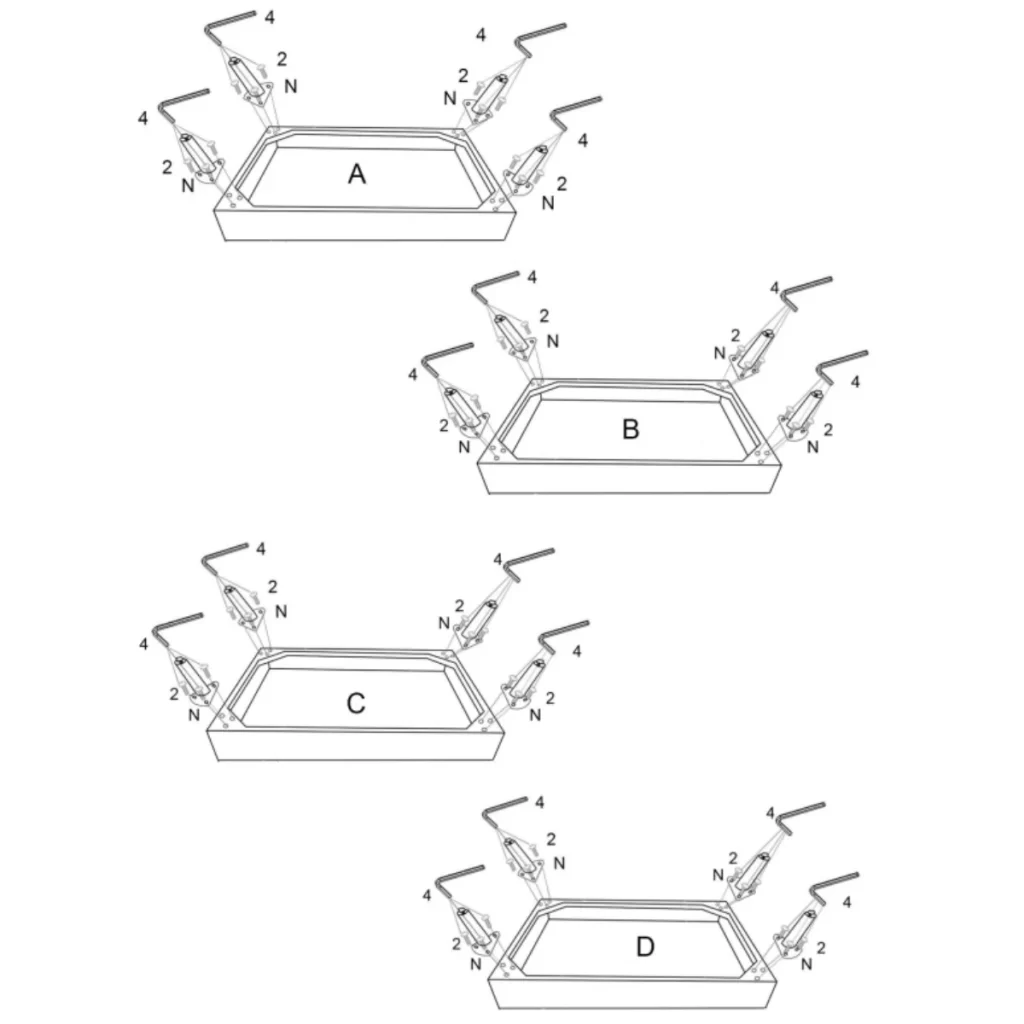

Step 1: Assembling the Legs
The first step in your sofa assembly is securing the legs. These provide the foundation for your L-shaped sectional, so it’s important to ensure they are properly attached.
- Start by attaching two legs to opposite sides of the sofa frame. Use the 16 screws (Part N) provided in your hardware kit to secure the legs in place. Make sure each leg is attached tightly to the frame.
This is an important step, as loose legs could affect the overall stability of the sofa. - Move to the other two sides of the frame and attach the remaining two legs. Again, secure them with the same screws (Part N) and ensure each leg is tightened properly.
- Continue attaching the next set of legs, ensuring that they are all placed securely.
- Finish by securing the final set of legs, making sure each one is properly tightened.
Note: To tighten the screws, use the wrench included in your kit. This will ensure that each screw is fully tightened and that your sofa has a sturdy base.

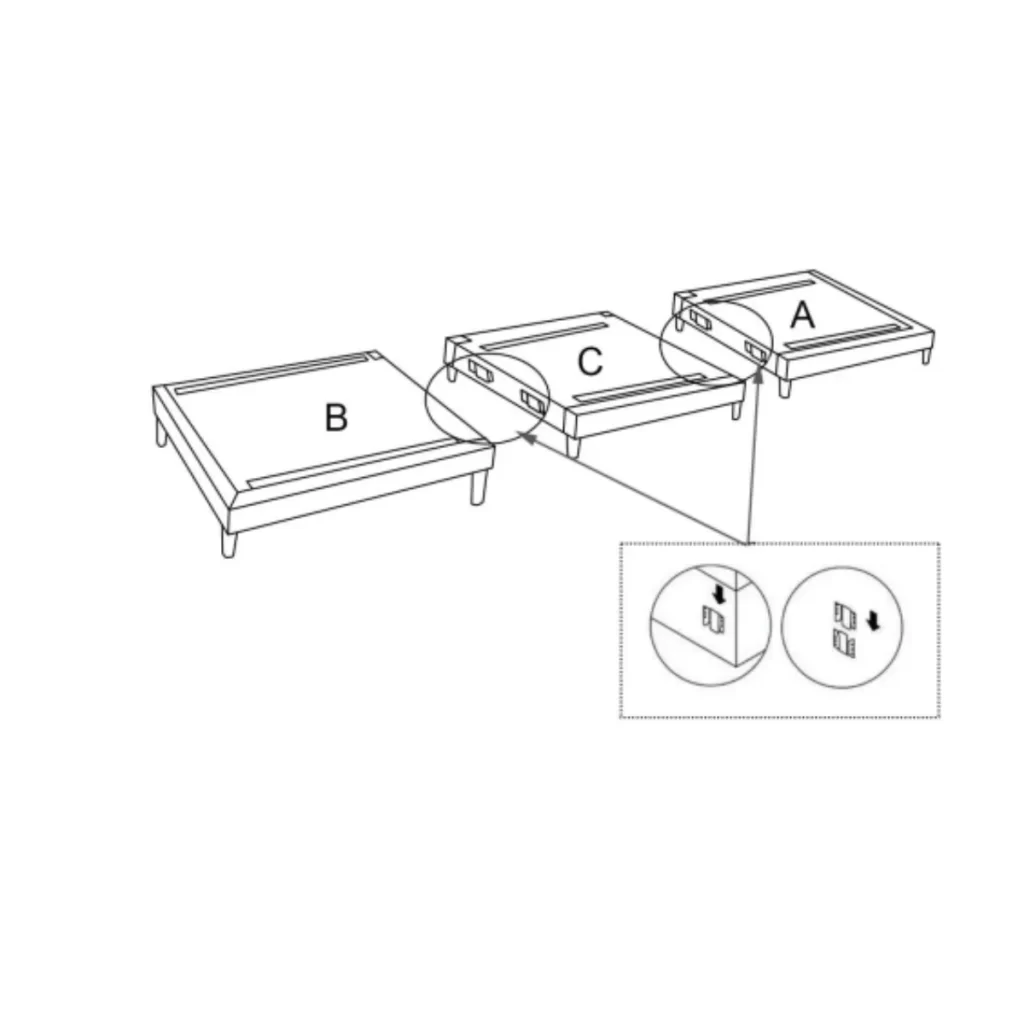

Step 2: Connecting the Seat Frames
Once the legs are in place, the next step is to connect the seat frames. The sectional sofa is made up of multiple frames, and proper alignment here is key for a strong and comfortable structure.
- Take the right Seat Frame (Part A) and connect it to the middle Seat Frame (Part C). Use the designated inserts as shown in the diagram for a secure connection.
- Next, connect the left Seat Frame (Part B) to the middle Seat Frame (Part C) in the same manner, using the inserts.
- Check that all frames are properly aligned before fully tightening. This ensures the frames are joined securely.
Tip: Be sure to handle the inserts carefully. They are designed to lock the frames together tightly, which is crucial for the overall stability of the sofa.

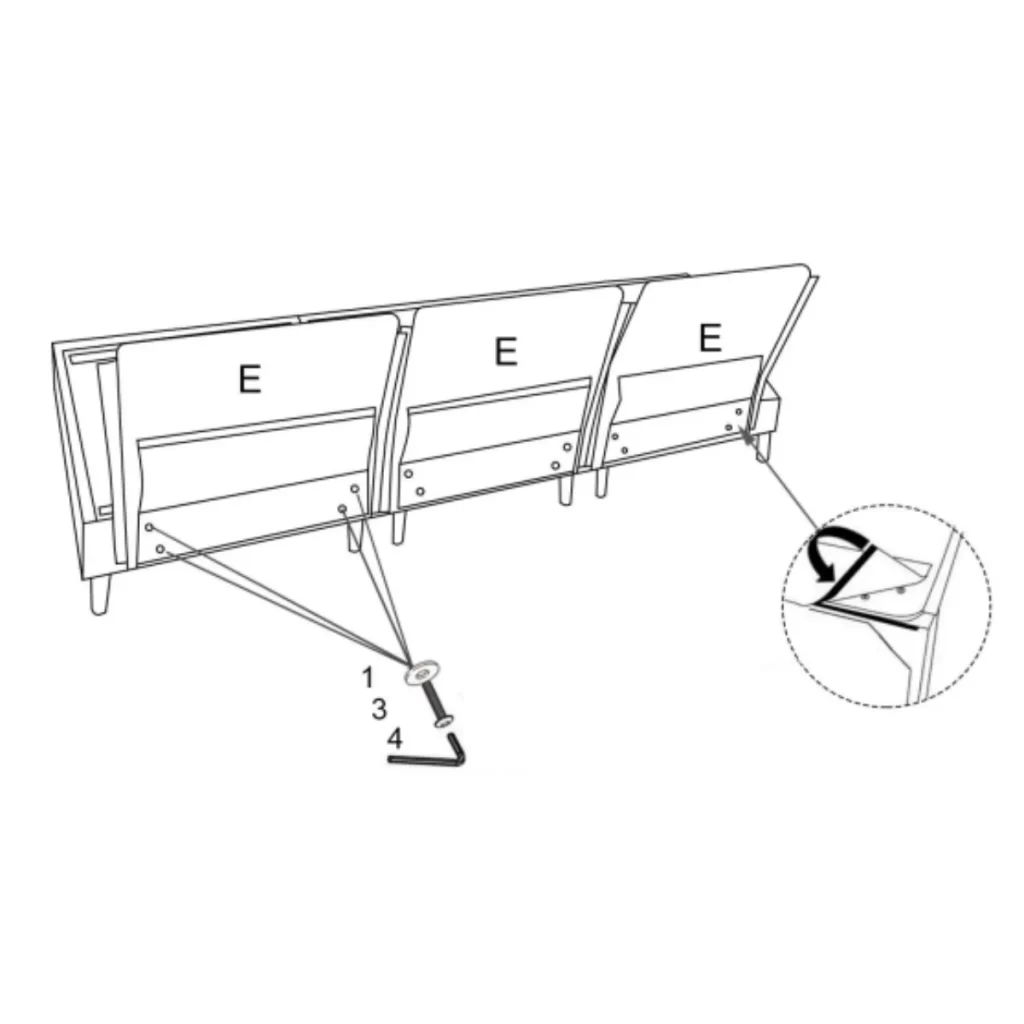

Step 3: Assembling the Backrests
The backrests provide support for the cushions and enhance the sofa’s comfort. This step involves attaching them to the seat frames.
- Attach the backrests (Part E) to the seat frames using the Screws (3) and Washers (1). Tighten each screw with the Wrench (4). The backrests are typically designed to snap into place with screws for added stability.
- Start by securing the top screws of each backrest first, followed by the bottom screws. This ensures that the backrests stay aligned during installation.
- After securing the screws, attach the Velcro pieces to the backrests. This helps in keeping the cushions in place and adds to the overall stability.
Tip: Ensure that all screws are in place and securely tightened before sitting on the sofa. If any screws are loose, it can cause instability, affecting the overall safety and comfort.

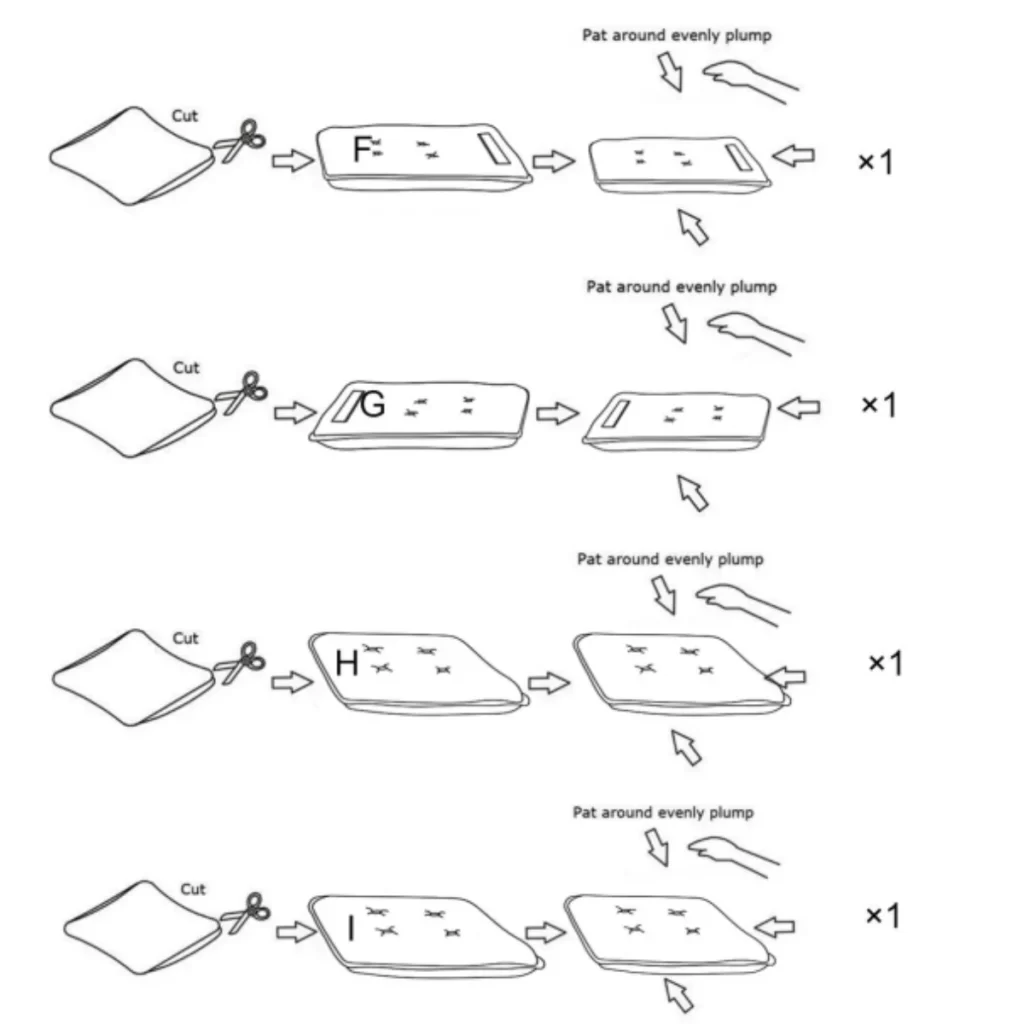

Step 4: Removal of Compression Bags for Seat Cushions
Your cushions arrive compressed in bags to save space during shipping. Now it’s time to expand them to their full size.
- Take the Seat Cushion (right) (Part F). Cut open the compression bag carefully, and gently pat the cushion to help it expand evenly.
- Move on to the left Seat Cushion (Part G). Similarly, cut open the compression bag and pat the cushion until it reaches its full shape.
- Do the same for the Backrest Cushion (Part H). Cut the compression bag and gently pat the cushion to ensure it fluffs up completely.
- Lastly, remove the compression bag from the Ottoman cushion (Part I) and repeat the process, gently patting the cushion as it expands.
Tip: Allow the cushions to fully expand over a 72-hour period for optimal comfort. Rushing the process can result in uneven cushions, which might affect comfort.

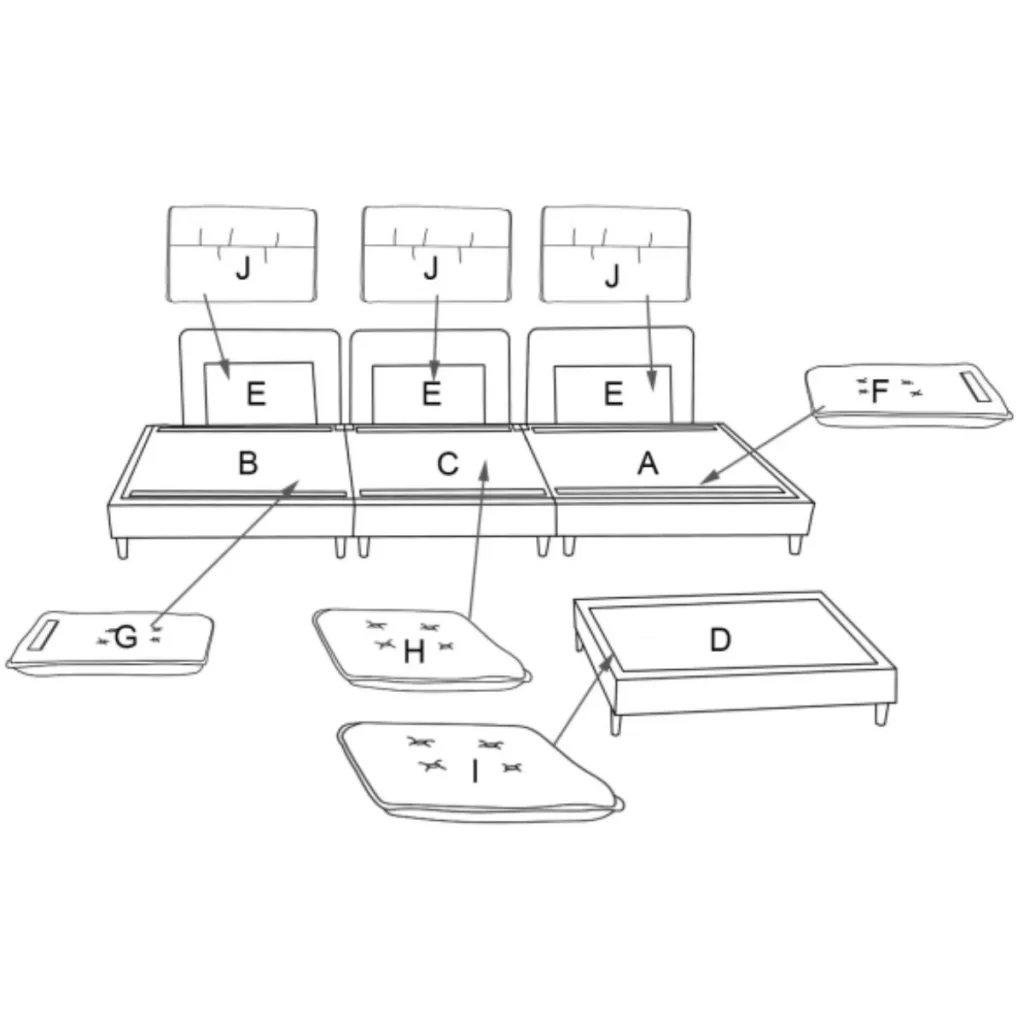

Step 5: Placing the Cushions on the Sofa
Now that the cushions are ready, it’s time to arrange them on the frame.
- Remove the Velcro protective cloth from the cushions to expose the Velcro strips.
- Place the Seat Cushions (Parts F, G, H, I) into their designated positions on the sofa. Each cushion is designed to fit into a specific slot for a perfect fit.
- Place the Backrest Cushions (Parts E, J) onto the backrest area. Ensure the cushions align perfectly with the frame for a clean, stylish look.
- Before sitting on the sofa, double-check all screws and cushion placements. This ensures the sofa is securely assembled and ready for use.

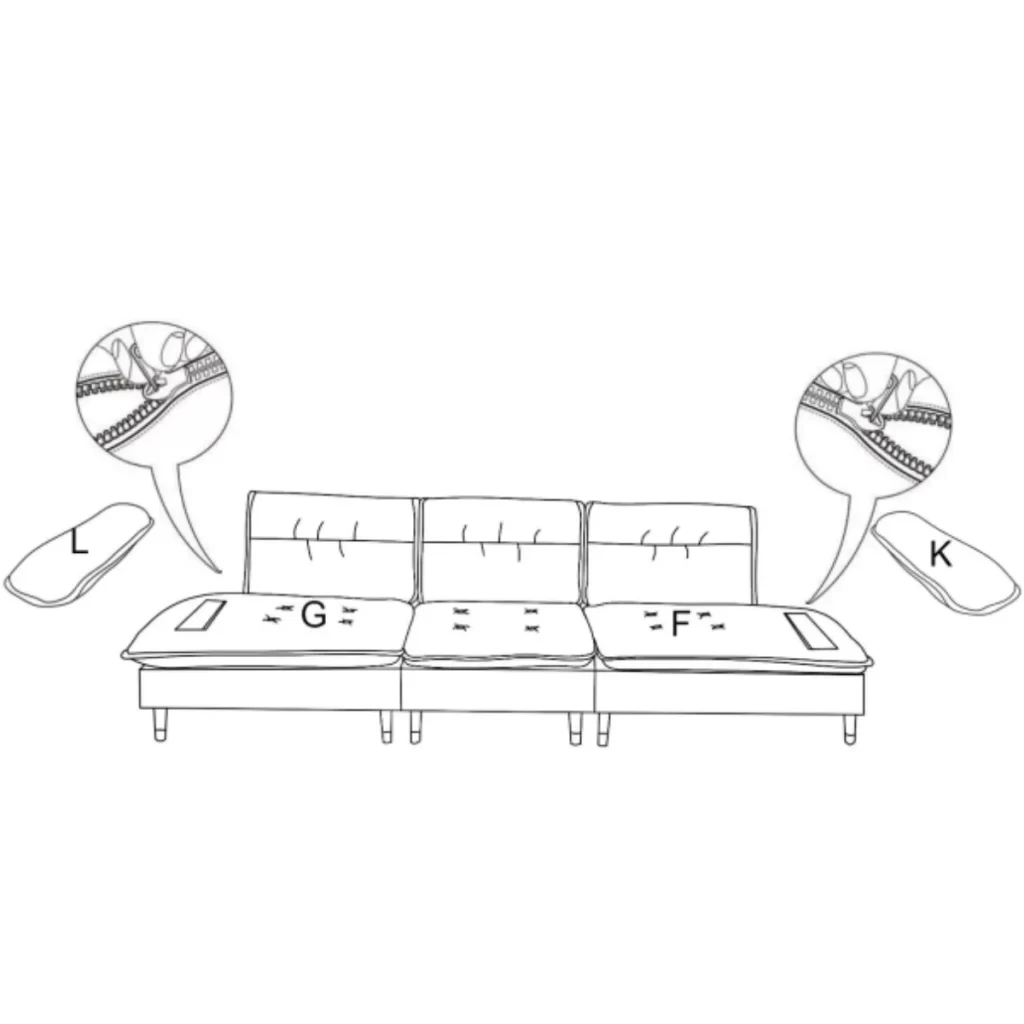

Step 6: Connecting the Armrest Pillows
For added comfort and style, the L-Shaped Convertible Sectional Sofa includes armrest pillows. These add both a soft touch and extra support.
- Take the Armrest Pillows (Parts K & L) and attach them to the Seat Cushions (Parts F & G) using the zippers provided. The zippers are designed for easy attachment and removal.
- Zip the armrest pillows securely onto the Seat Cushions. Ensure that the zippers are fully closed to avoid any slipping or shifting while using the sofa.
Tip: Zipping the armrest pillows tightly not only enhances the look but also ensures they stay in place while you relax.

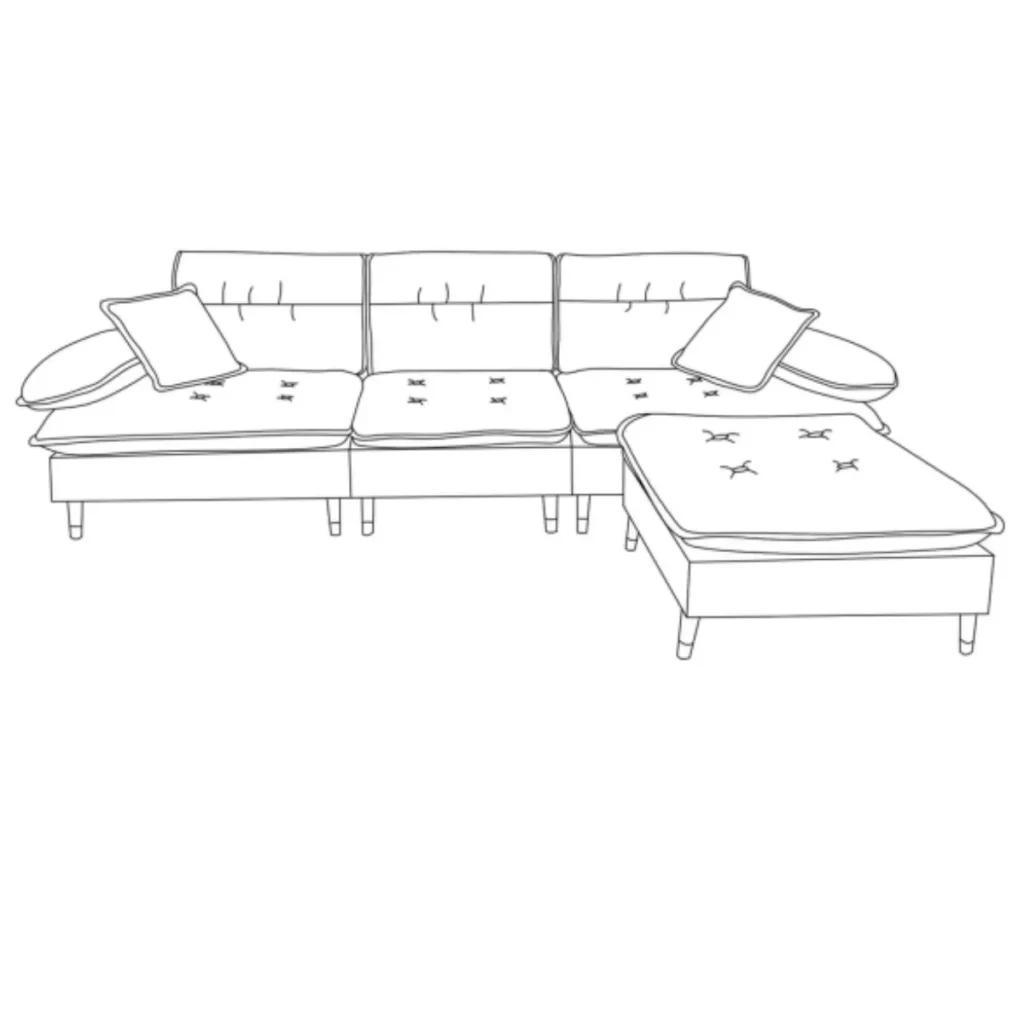

Step 7: Final Assembly – Complete Sofa
Once all the cushions and armrest pillows are in place, your L-Shaped Convertible Sectional Sofa is ready to enjoy.
Final Check:
Before you take a seat, perform a final inspection to make sure:
- All screws are tightened properly.
- The cushions are aligned correctly.
- The armrest pillows are securely zipped.
Once all these checks are done, your sofa is ready for use. You now have a sturdy, stylish, and comfortable seating arrangement that will enhance any room in your home.
Care Tips for Your Sofa
- Protect from Sunlight: Keep the sofa away from direct sunlight to prevent colour fading. Rotate cushions and pillows regularly for even wear.
- Avoid Spills: Wipe up spills immediately using a soft, dry cloth to prevent stains. Avoid eating or drinking on the sofa to reduce risk.
- Cushion Care: Rotate and fluff cushions often to maintain shape and comfort. Store them away from sunlight when not in use.
- Ottoman Care: Vacuum or gently brush the ottoman surface to remove dust. Spot clean with mild detergent when needed.
- Pet Protection: Trim pet nails and use a sofa cover to reduce scratches, fur buildup, and odours.
Maintenance & Cleaning Tips for Your Sofa
- Regular Cleaning: Vacuum upholstery weekly to remove dust, crumbs, and debris. For stains, use a mild detergent or upholstery cleaner.
- Vacuum Legs and Frame: Clean the legs and frame regularly with a damp cloth or vacuum attachment to maintain appearance.
- Tighten Screws: Periodically inspect and tighten all screws and bolts to ensure the sofa remains stable.
- Avoid Excessive Weight: Do not sit or lean heavily on armrests or edges to prevent frame damage.
- Deep Cleaning: Perform a deep clean every few months using a fabric-safe cleaner or professional upholstery service for longevity.
Troubleshooting Common Issues for Your Sofa
| Issue | Fix |
| Loose Legs or Unstable Sofa | Tighten all screws with the provided wrench, ensuring each leg is securely attached. Tighten in a diagonal pattern for even pressure. |
| Difficulty Aligning Seat Frames | Ensure inserts are aligned before inserting screws. Adjust parts gently to fit them properly. |
| Backrest Not Securing | Double-check that screws are fully tightened. Start with the top screws, then the bottom. Ensure Velcro is attached. |
| Cushions Not Expanding Fully | Allow 72 hours for full expansion. Gently pat cushions to help them fluff evenly. |
| Armrest Pillows Shifting | Ensure zippers are fully closed. Tighten them to prevent slipping. |
| Screws Not Fitting | Verify you’re using the correct screw size. Realign parts if screw holes don’t match. |
| Cushions Not Aligning Properly | Ensure cushions are placed in the correct slots. Adjust for a snug fit. |
| Uncomfortable Sofa | Allow cushions to expand for 72 hours. Add a seat pad if needed for extra comfort. |
| Frame Misalignment or Gaps | Check all parts are securely attached and properly aligned. Adjust frame pieces if necessary. |
Your L-Shaped Convertible Sectional Sofa is now fully assembled, and you’re ready to experience ultimate comfort and style. By following these easy-to-follow steps, you have transformed a collection of parts into a functional piece of furniture that adds value to your living space.
Take a moment to relax and enjoy your new sofa. If you run into any issues or have questions during assembly, don’t hesitate to refer back to this guide or consult the troubleshooting section in your product manual.
You can also download the L-Shaped Convertible Sectional Sofa Manual(PDF) for your reference.
FAQs
1. How can I make my sofa more comfortable for long periods of sitting?
To enhance comfort, consider adding extra throw pillows or using seat cushions designed for additional support. Additionally, a memory foam cushion or seat pad can help provide better long-term support for extended sitting sessions.
2. How do I prevent my sofa from sliding on hardwood floors?
Use non-slip furniture pads or rugs underneath the sofa to prevent it from sliding. These pads are available in various sizes and help secure the sofa in place without damaging the floor.
3. Can I change the configuration of my L-shaped sofa?
Many L-shaped sectionals are designed to be modular, so you can change the configuration by detaching and rearranging the pieces. However, it’s important to ensure all connections are secure to maintain stability after rearranging.
4. How do I fix uneven legs on my sectional sofa?
If you notice that some legs are uneven, check the floor for any irregularities and adjust the sofa legs. Many sectional sofas have adjustable feet that can be turned to level the sofa. If the issue persists, consider adding furniture pads underneath to stabilize it.
